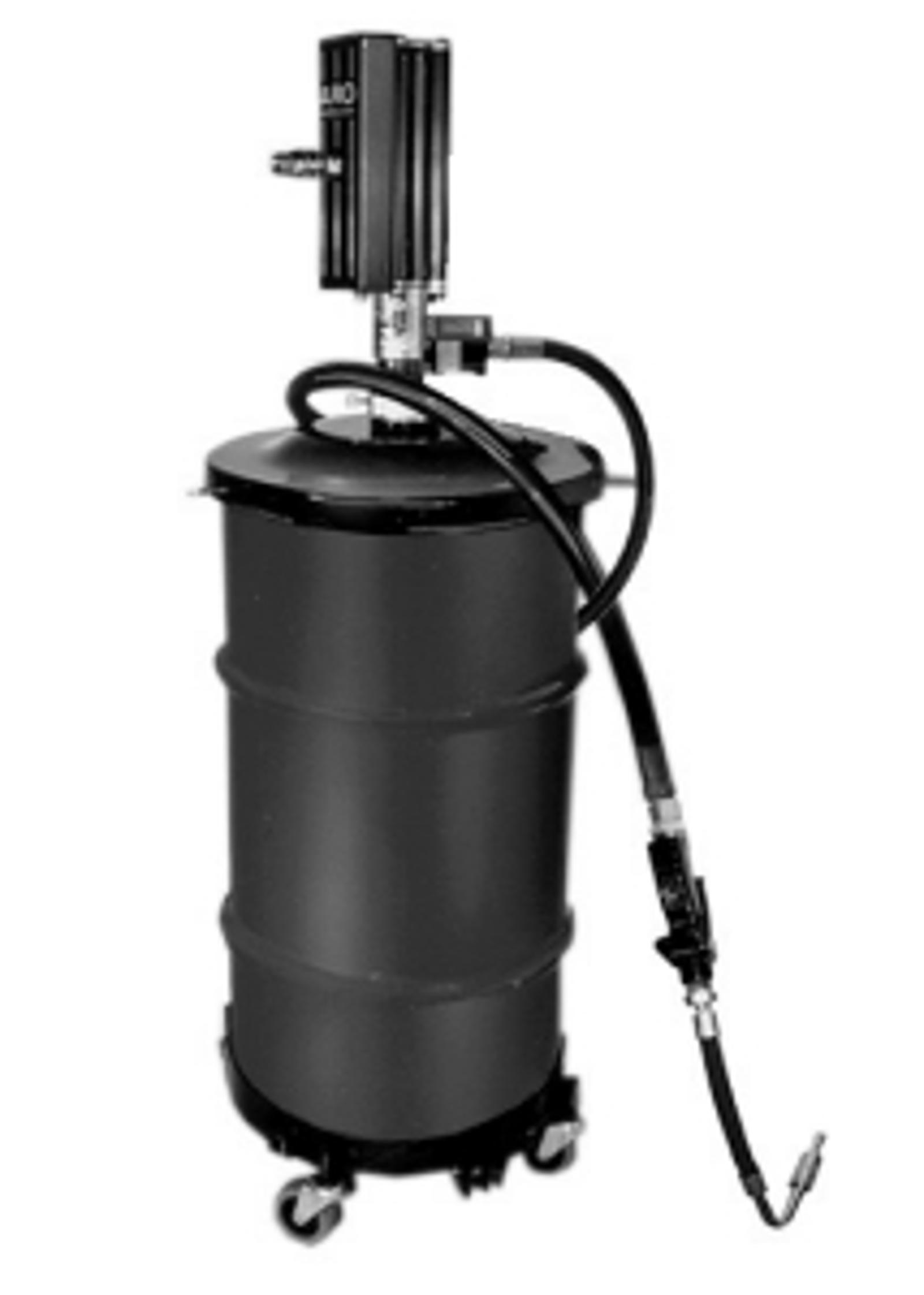

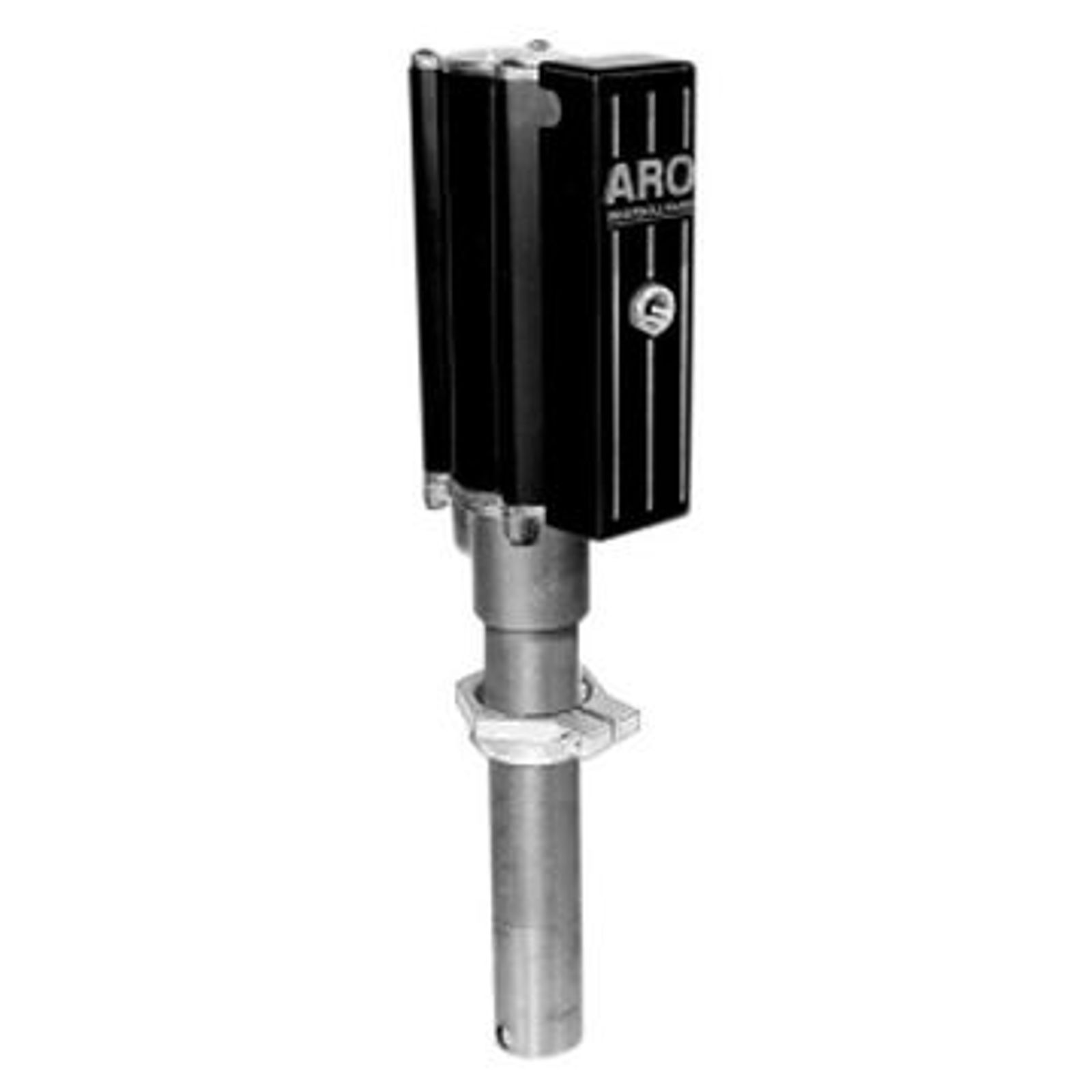

ARO lubrication pumps, also called oil pumps, handle motor and gear oils, transmission fluid, and standard and industrial greases. Pumps are offered from 3:1 to 100:1 ratios in order to meet the requirements of any application - commercial vehicle servicing to lubricating heavy mining equipment.
Lower Pump Material | Carbon Steel |
Air Motor Diameter | 2” |
Air Inlet Pressure Range psi (bar) | 0-150 (0-10.3) |
Fluid Pressure Range psi (bar) | 0-7500 (0-517.2) |
Stroke Length | 3” |
Max. Recommended Cycles/Minute | 80 |
Flow Rate lbs/min (kg/min) | 2 (1) |
Cycles Per Gallon (Liter) | 12.3 (3.2) |
Air Inlet Size | 1/4” (F) |
Fluid Outlet Size | 3/8” (F) |
Fluid Inlet Size | Immersed |
Noise Level @ 60 psi – 40 cpm | 85 db(A) |
