Custom Pump Skids For Data Centers

AI and HPC environments are pushing rack densities and thermal loads higher than ever. Modern cooling architectures — CDUs, liquid cooling loops, rear-door heat exchangers, and glycol systems — demand reliable, precisely matched fluid management. Deploying that infrastructure quickly, without compromising uptime or efficiency, is one of the most pressing challenges engineering teams face today.

That is where ARO comes in. Our custom pump skids and cartridge solutions are designed to simplify and accelerate data center cooling deployment — from a single integrated unit to a full fluid management system.

Custom pump skids for data center cooling are pre-engineered fluid management systems. They help move coolant safely and efficiently in modern data center environments.

Not Just a Pump — A Complete, Plug-and-Play Cooling Solution

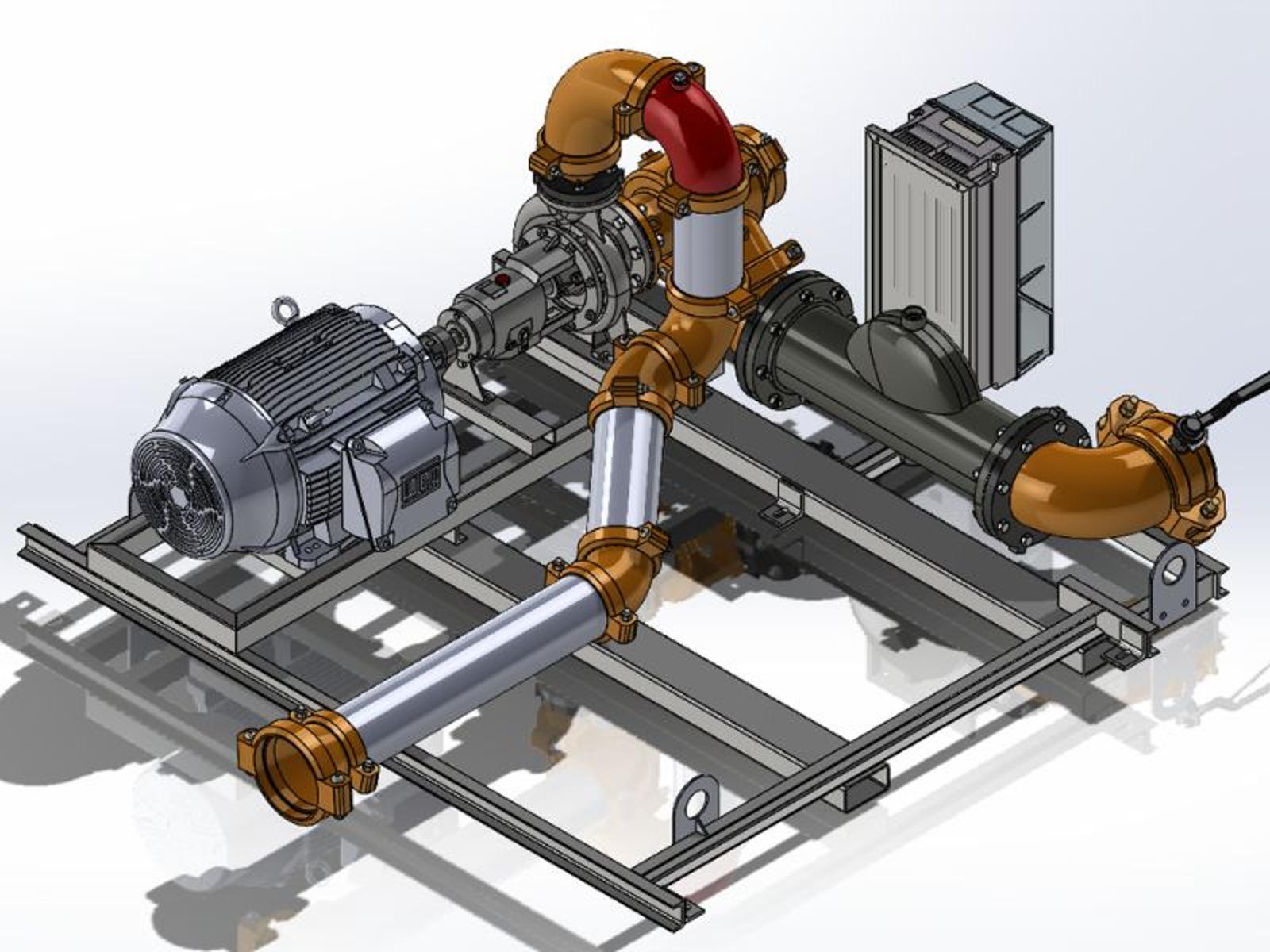

We design, engineer, build, and deliver complete pump skids and cartridges as a single ready-to-install unit. You specify your operating requirements. We handle hydraulic design, pump selection, motor sizing, VFD controls, all internal piping, and factory assembly and acceptance testing — before the unit ships.

Grooved connections are the only field task: connect supply, return, and power. No welding required. Every pipe run is fabricated and assembled at our facility.

Every skid and cartridge we deliver includes:

Hydraulic design and pump selection — pump volutes and impellers designed for your exact operating point at full trim and best efficiency point (BEP), not selected from a standard catalog curve
Motor sizing and coupling — sized to your horsepower requirement and 24/7 duty cycle
VFD controls and communication integration — controls motor speed based on demand; integrates with your BMS via BACnet
Suction diffuser — conditions inlet flow, catches debris, and protects the pump to extend service life
Air purge valve — automatically removes trapped air at start-up, preventing flow loss and damage
All internal piping, valves, and fittings — every pipe run fabricated and assembled at our facility
Structural skid frame with lifting points — pre-aligned steel base; everything arrives mounted and ready

Every component is selected, sized, assembled, and tested by our team before the unit leaves our facility.

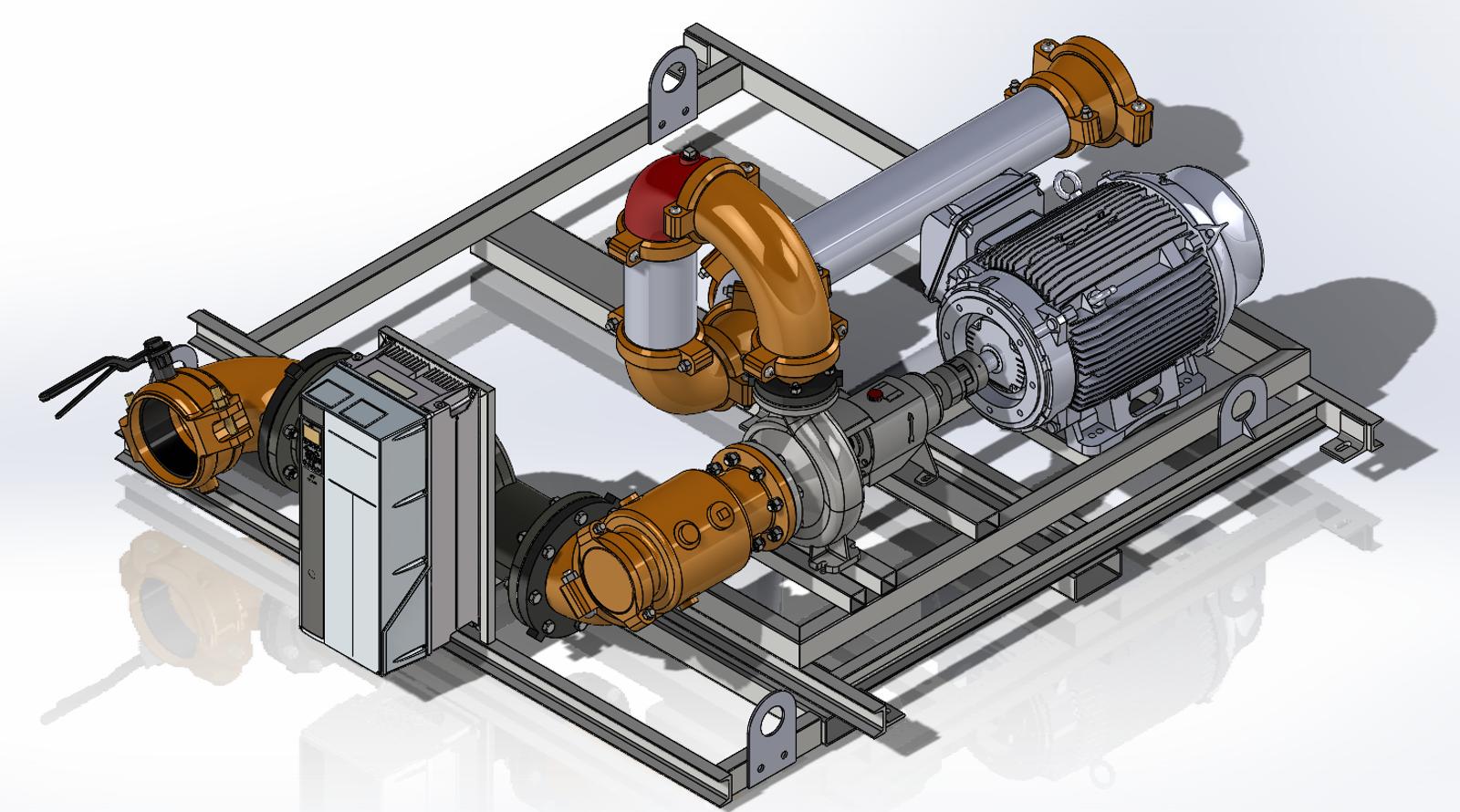

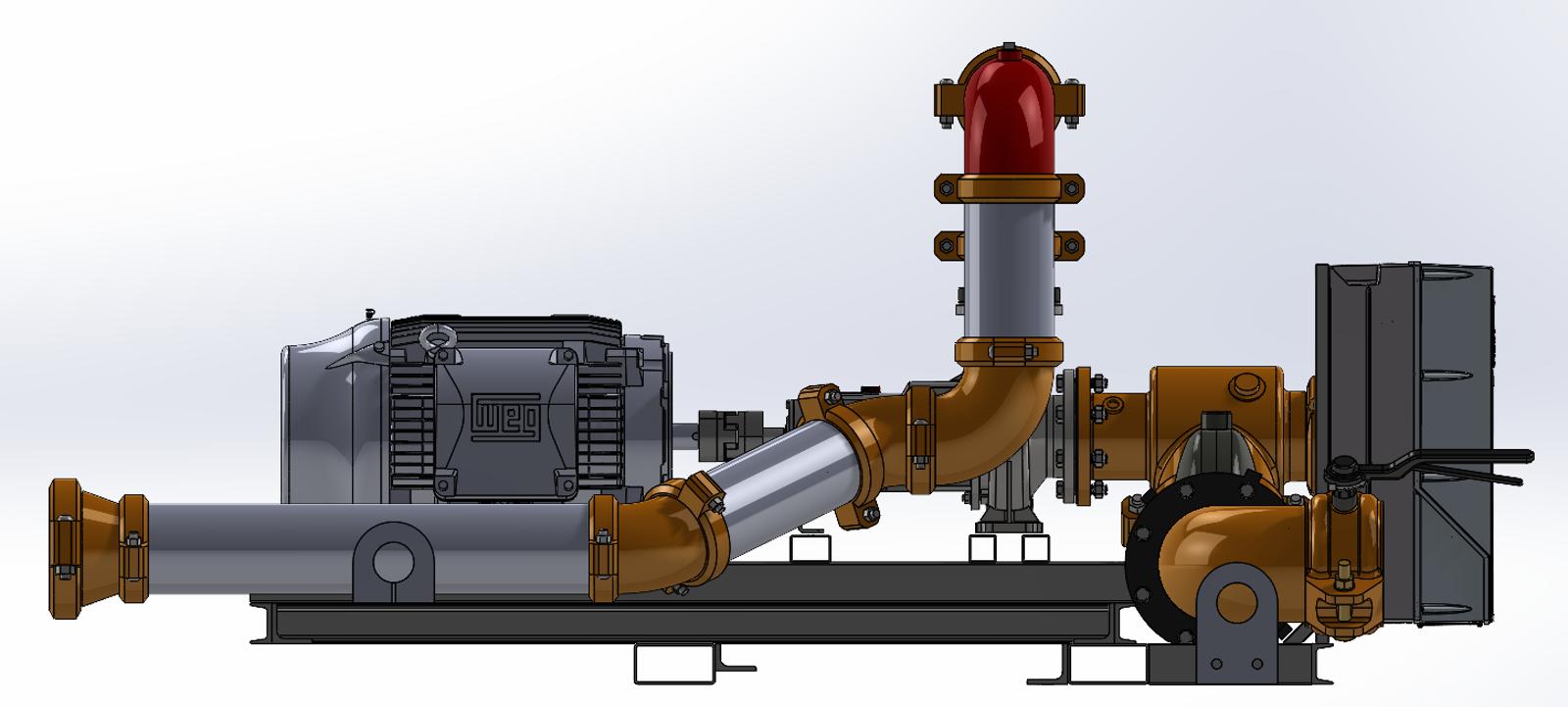

Here is a real-world example of what we deliver. A 60 HP (45 kW) cooling skid for a mission-critical data center environment:

Specification	Value
Motor	60 HP (45 kW)
Pump	5″ × 3″ (127 mm × 76 mm) long-coupled centrifugal
Flow Rate	1,021 GPM (65 L/s)
Head	174 ft (53 m)
Inlet / Outlet	8″ (200 mm) grooved connections
Controls	NEMA 4X VFD, BACnet protocol
Air Management	Suction diffuser + air purge valve
Frame	Custom structural steel skid
Overall Length	~107 in (2,718 mm)
Overall Width	~88 in (2,235 mm)

Every dimension, connection point, and component specification was driven by the customer's operating requirements.

Ready to Simplify Your Cooling Infrastructure? Let's Talk.

Specify your flow rate, head, footprint, and controls requirements — and we will engineer a custom pump skid or cartridge solution built precisely for your data center. Our team handles everything from hydraulic design to factory testing and delivery.

Custom Pump Skids for Data Center Cooling

Not Just a Pump — A Complete, Plug-and-Play Cooling Solution

Every component is selected, sized, assembled, and tested by our team before the unit leaves our facility.

Here is a real-world example of what we deliver. A 60 HP (45 kW) cooling skid for a mission-critical data center environment:

Ready to Simplify Your Cooling Infrastructure? Let's Talk.

FAQ

What is the difference between a pump skid and a cartridge solution?

What flow rates can your pump skids support?

Can your skids integrate with our building management system?

What does our team need to do on site?

Can you accommodate tight floor space or non-standard piping layouts?

Do you support commissioning and long-term maintenance?
