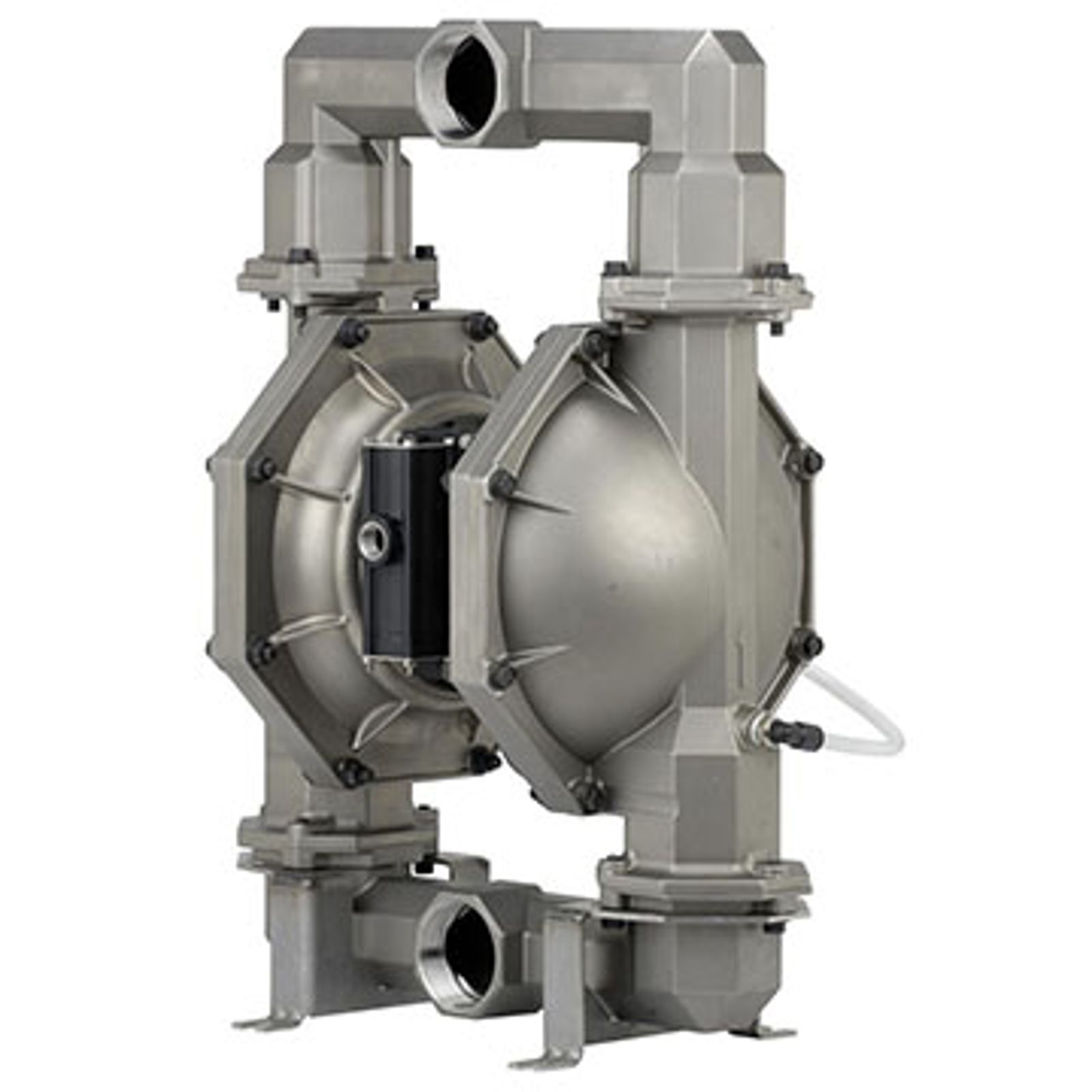

2:1 Ratio High Pressure Pump

PH15F-XSP-SXX-C, PH20F-XSP-SXX-C, PH30F-XSP-SXX-C

The ARO high pressure air diaphragm pump was developed for applications requiring fluid pressures in excess of the 100 psi allowed by traditional pumps. Compared to a standard diaphragm pump, our 2:1 ratio high pressure diaphragm pump can produce up to 200 psi at about half the flow rate.

The 2:1 ratio is accomplished by using the effective surface area of both diaphragms to double the output pressure.

Features

Utilizing Power - Can produce up to 200 psi, at about half the flow rate of a standard diaphragm pump. Our high pressure air operated diaphragm pump utilizes the effective surface areas of both diaphragms to double output pressure.
Structural Integrity - Bolted construction eliminates problems associated with leaking band-clamps while also reducing maintenance costs.
Simul-Shift™ and Quick Dump™ valve technology for stall free and ice free operation
Intelligent Design - Modular major valve design for easy repair and maintenance
Built to Last - Convoluted diaphragms for long life
Size - Available in 3", 2" and 1.5" port sizes
