H Series | Pneumatic Valves | ARO Fluid Handling

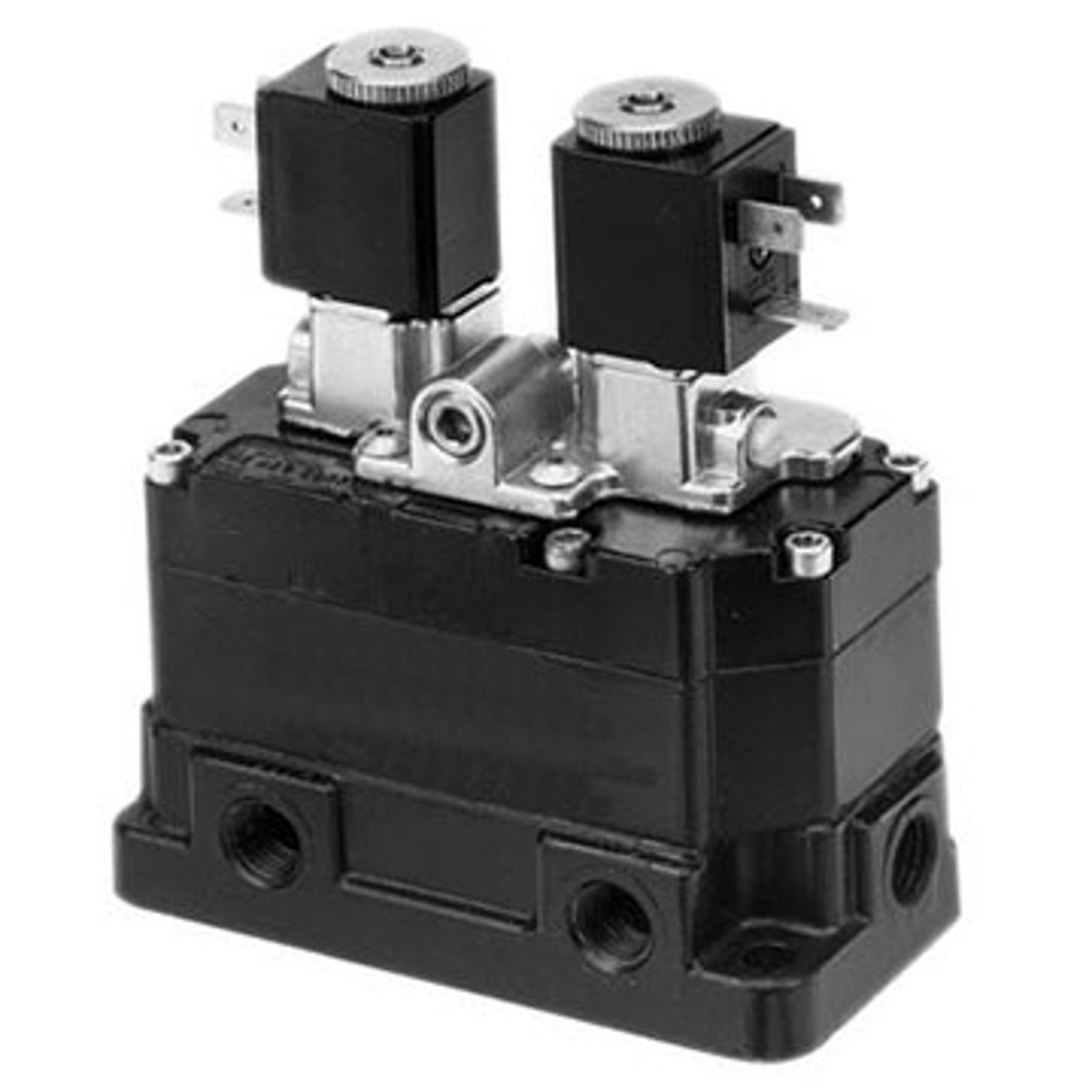

50 E - K - H Series Pneumatic Valves

Features

Port Sizes: 1/4", 3/8", 1/2"
H-Series Valves feature high-flow and fast response.
Numerous Styles and Options.
3-Way and 4-Way 2-position Poppet Valves.
Several Actuator Styles.
Override is not available with "H" Series Valves.
Electric 3-Way Single Solenoid, 4-Way Solenoid/ Internal Pilot, 4-Way Double Solenoid
Pneumatic 3-Way Pilot/Spring, 4-Way Double Pilot, 4-Way Manual Bleed, 4-Way Pilot/Internal Pilot

Comprehensive Valve Design

1. Durable Valve Body

Valve body is die-cast Zinc, with a zinc chromate coating for added corrosion resistance in harsh environments.

2. Superior Performance

Large, unrestricted air passages produce high flow and fast response times.

3. Superior Design

3-Way valves feature a single poppet. 4-Way valves have two simultaneously driven poppets to provide the 4-way function.
