Keep hoses under control. Keep trucks shipping.
ARO Hose Reels cut service-truck build time from 8 weeks to 4 — pre-engineered to match ARO pumps, backed by a single Ingersoll Rand warranty, delivered through a global distribution network.
The accessory that completes the solution.
Whether you're piping new oil into a workshop, evacuating waste oil from a fleet, dispensing fuel from a service truck, or running a high-pressure grease line on a mining site, the hose between your ARO pump and the point of use is part of the system — not an afterthought. ARO Hose Reels keep that hose where it belongs: protected, under control, and ready to work.
Five spring-driven reels cover the practical range of light-industrial and service-truck applications — from 3/8" high-pressure grease at 280 bar (4.060 psi) to 1-1/2" high-flow fuel at 41.1 bar (600 psi). Each reel is built on Reelcraft's proven steel construction, finished in ARO red, and engineered for the daily duty cycle ARO customers actually run.
Pair them with ARO piston pumps, ARO AODD diaphragm pumps, EVO electric diaphragm pumps, FRL units, and the rest of the ARO fluid-handling family — and let one brand stand behind the whole solution.
Work Faster
Smooth spring-driven retraction saves time and reduces operator fatigue.
Work Safer
Eliminate trip hazards. Durable steel construction protects hoses from environmental damage.
Spend Less
Extend the life of your equipment. ARO reels prevent kinking and abrasion.
Industry Built
Designed specifically for the harsh environments of mining, heavy construction, and service fleets.
Configuration | ARO P/N | Product Name | Hose I.D. | Max. Pressure | Primary Application | Description |
Compact & High-Pressure (Grease & Oil) | ||||||
Compact Double-Support | 614256 | ARO Hose Reel Oil Medium | 1/2" (12.5 mm) | 160 bar / 2,320 psi | Oil (medium pressure) | Compact double-support reel for medium-pressure oil. Built for truck-bed and shop-bay installs. |
Compact Double-Support | 614261 | ARO Hose Reel Grease HP | 3/8" (6 mm) | 280 bar / 4,060 psi | Grease (high pressure) | High-pressure grease reel engineered to pair with ARO piston pumps. One spec, one warranty, one installation. |
Industrial Fluids & Heavy Duty (Heavy Oil & Waste Oil) | ||||||
Heavy-Duty | 614258 | ARO Hose Reel Oil Heavy | 3/4" (12.5 mm) | 105 bar / 1,523 psi | Oil (heavy-duty) | Heavy-duty oil dispensing for demanding industrial service. Larger hose, higher flow, field-proven. |
Heavy-Duty | 614259 | ARO Hose Reel Fuel/Waste | 1" (25.4 mm) | 90 bar / 1,305 psi | Waste oil, fuel | Large-bore reel for waste oil and fuel transfer. Designed for service-truck fluid evacuation and refuel operations. |
Ultra-Heavy-Duty (High-Volume Fuel Transfer) | ||||||
Ultra Heavy-Duty | 614260 | ARO Hose Reel Fuel XL | 1-1/2" (38.1 mm) | 41.4 bar / 600 psi | Fuel (high-flow) | Ultra heavy-duty fuel reel for high-volume field refueling. Purpose-built for mining and large-fleet service. |
Compact & High-Pressure (Grease & Oil)
Compact Double-Support
.png?format=pjpeg&width=1600&quality=75&auto=webp)

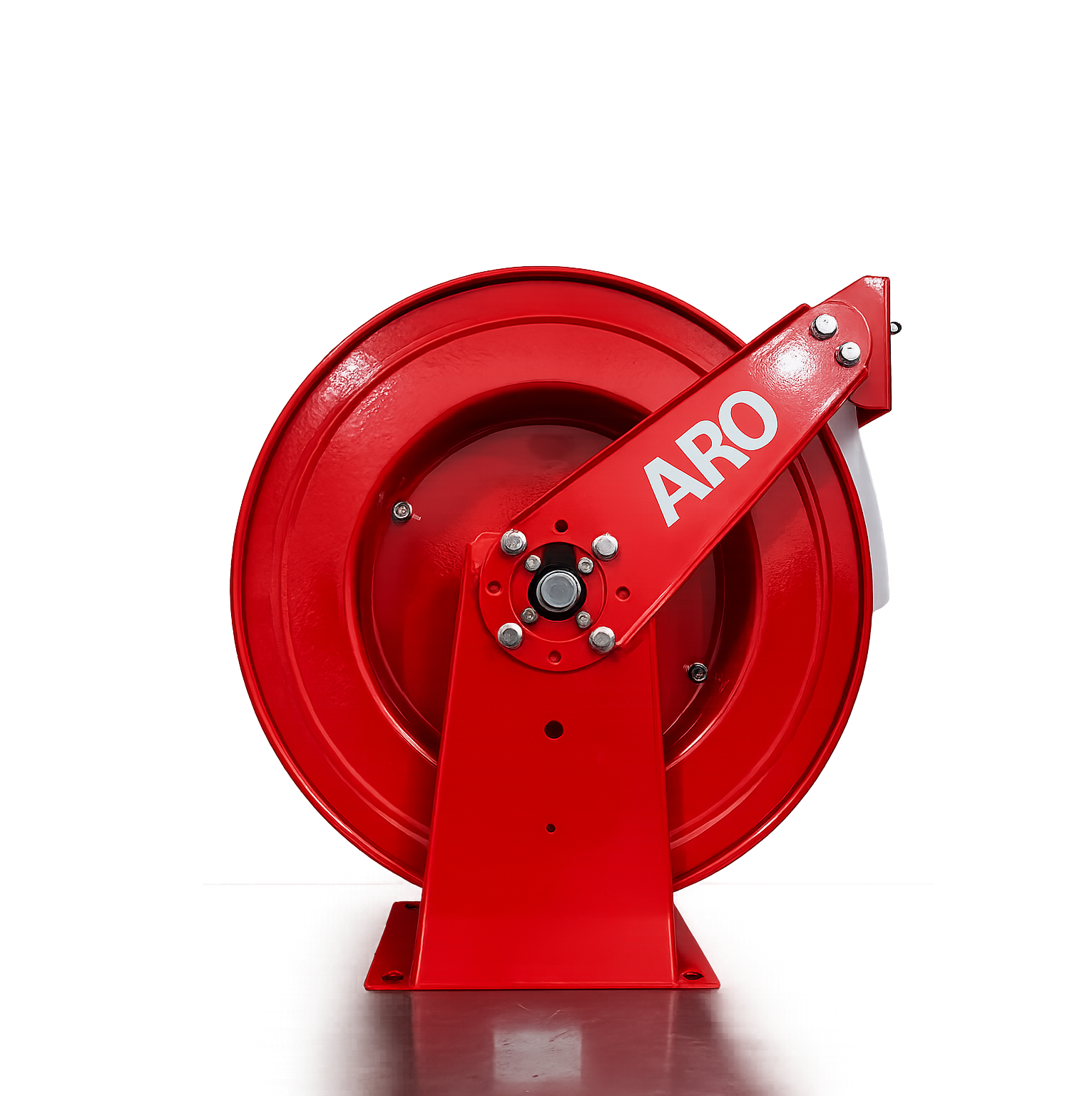

ARO Hose Reel Oil Medium
Compact double-support reel for medium-pressure oil. Built for truck-bed and shop-bay installs.
Hose I.D.: 1/2" (12.5 mm)
Max. Pressure: 160 bar / 2,320 psi
Primary Application: Oil (medium pressure)
ARO P/N: 614256
.png?format=pjpeg&width=1600&quality=75&auto=webp)

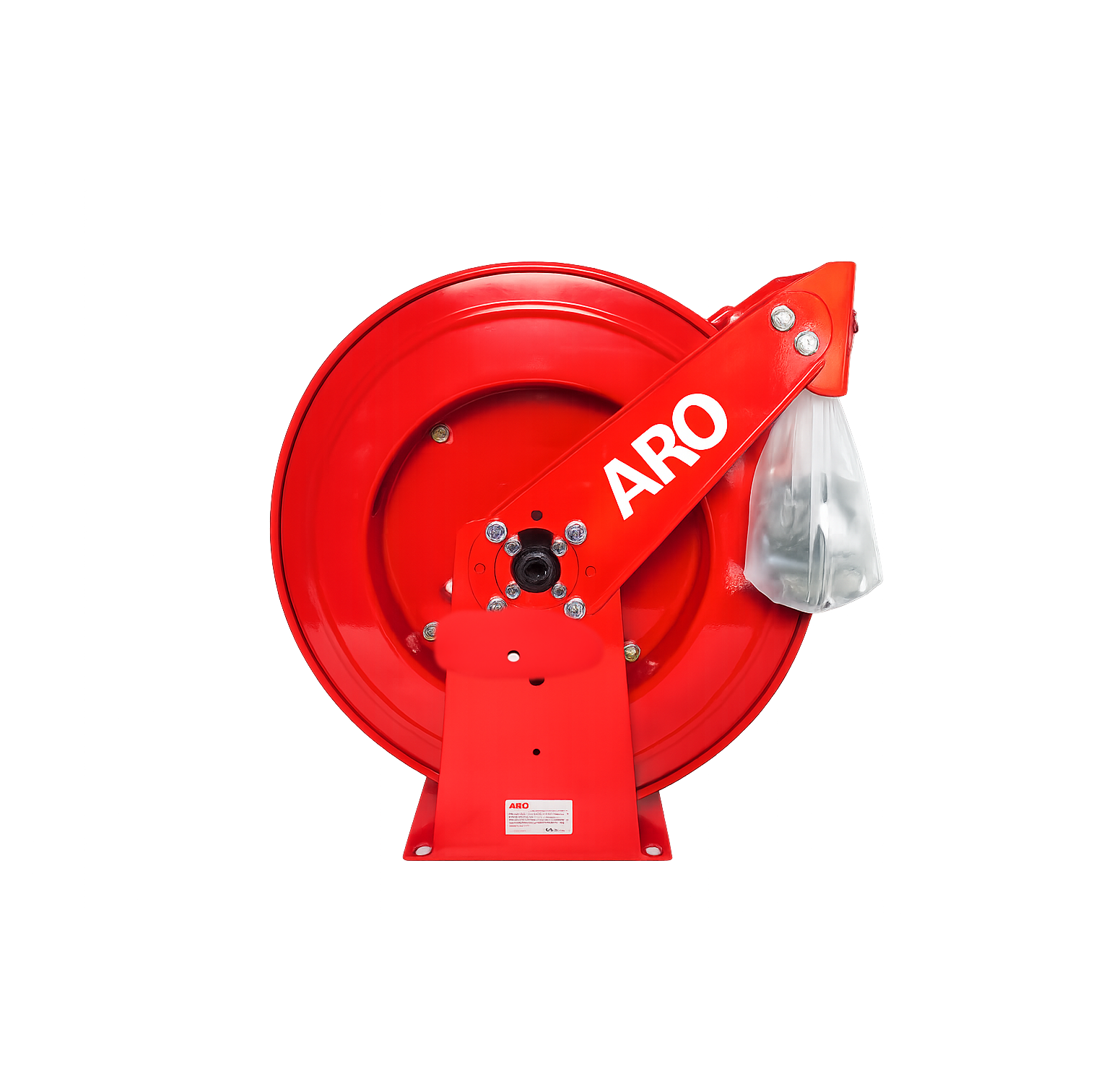

ARO Hose Reel Grease HP
Compact double-support reel for medium-pressure oil. Built for truck-bed and shop-bay installs.
Hose I.D.: 3/8" (6 mm)
Max. Pressure: 280 bar / 4,060 psi
Primary Application: Grease (high pressure)
ARO P/N: 614261
Industrial Fluids & Heavy Duty (Heavy Oil & Waste Oil)
Heavy-Duty
.png?format=pjpeg&width=1600&quality=75&auto=webp)

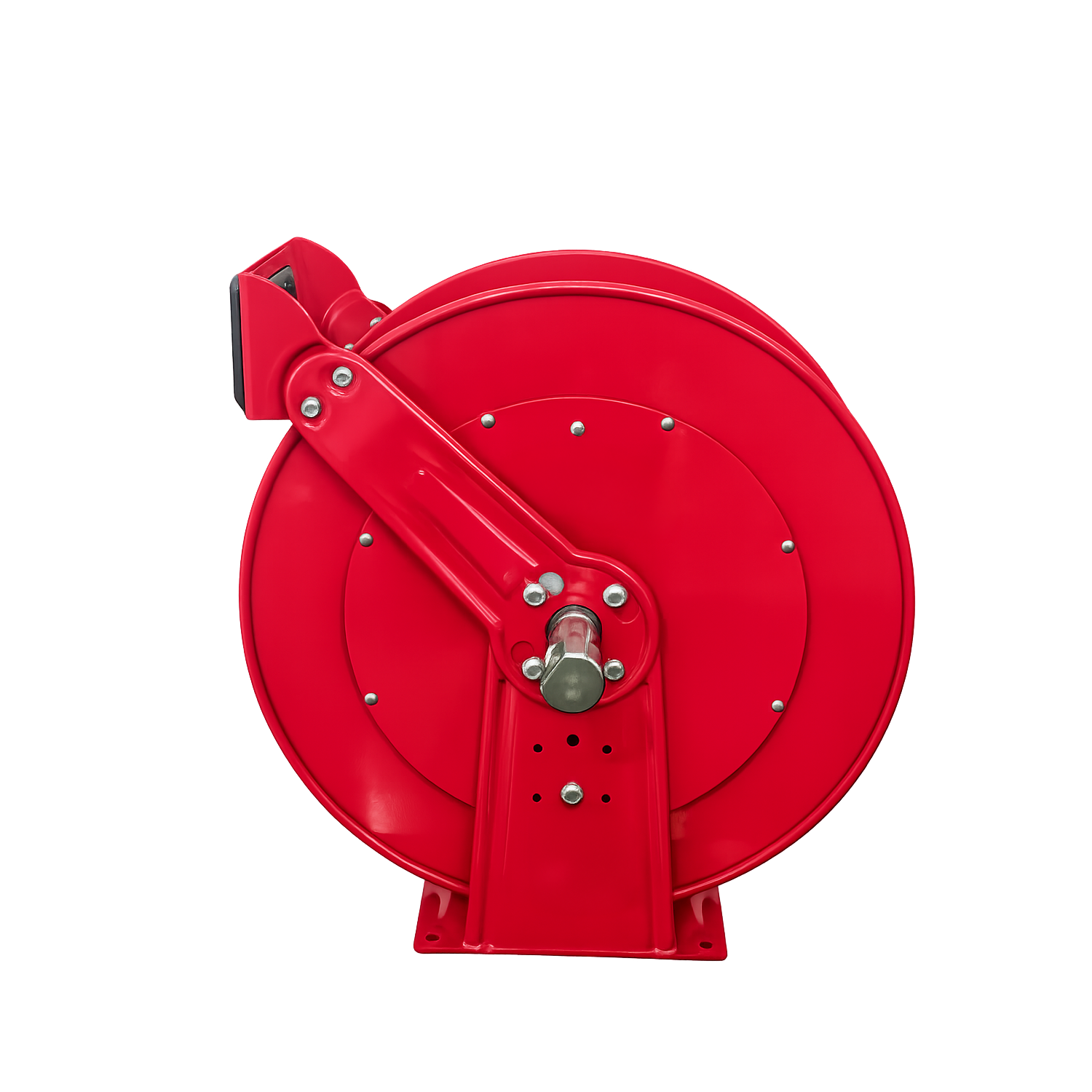

ARO Hose Reel Oil Heavy
Heavy-duty oil dispensing for demanding industrial service. Larger hose, higher flow, field-proven.
Hose I.D.: 3/4" (12.5 mm)
Max. Pressure: 105 bar / 1,523 psi
Primary Application: Oil (heavy-duty)
ARO P/N: 614258
.png?format=pjpeg&width=1600&quality=75&auto=webp)

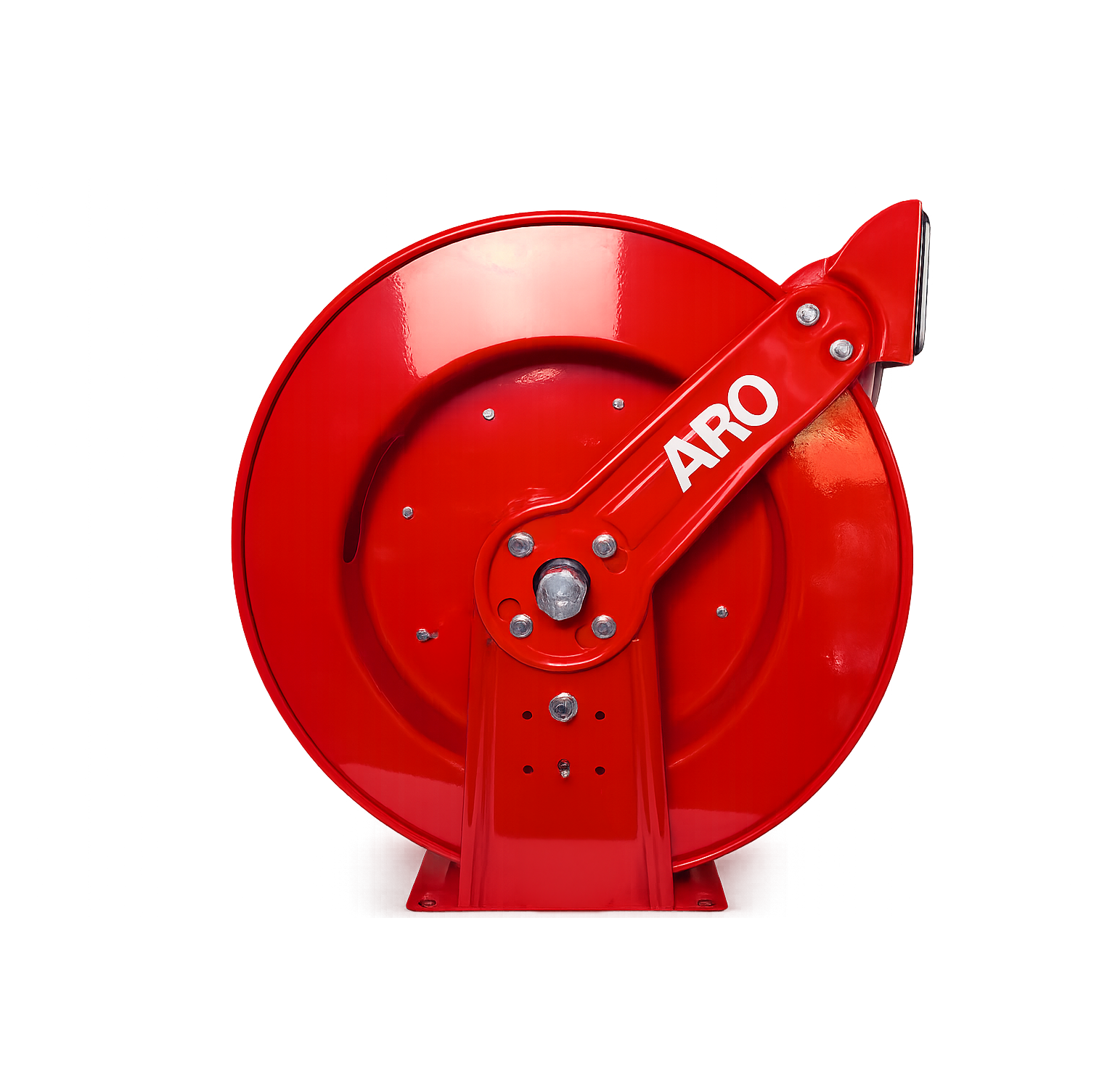

ARO Hose Reel Fuel/Waste
Large-bore reel for waste oil and fuel transfer. Designed for service-truck fluid evacuation and refuel operations.
Hose I.D.: 1" (25.4 mm)
Max. Pressure: 90 bar / 1,305 psi
Primary Application: Waste oil, fuel
ARO P/N: 614259
Ultra-Heavy-Duty (High-Volume Fuel Transfer)
Ultra Heavy-Duty
.png?format=pjpeg&width=1600&quality=75&auto=webp)

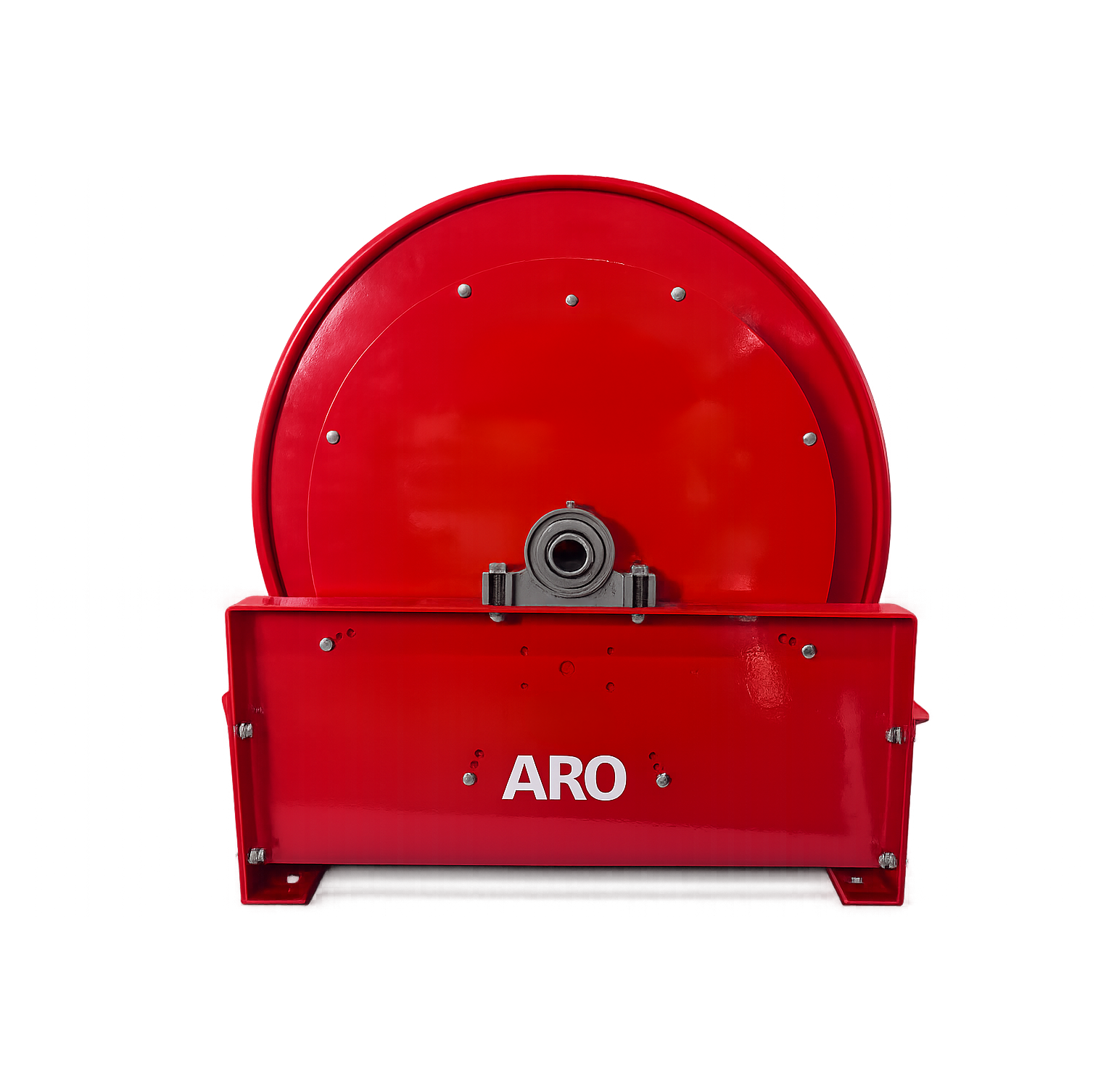

ARO Hose Reel Fuel XL
Ultra heavy-duty fuel reel for high-volume field refueling. Purpose-built for mining and large-fleet service.
Hose I.D.: 1-1/2" (38.1 mm)
Max. Pressure: 41.4 bar / 600 psi
Primary Application: Fuel (high-flow)
ARO P/N: 614260
Bundles and configurations
| ARO Lubrication System | ARO Lubrication Bay | ARO Reel Series |
Segment | Service-truck builders & integrators in open-pit mining and heavy construction | Fixed maintenance workshops, industrial MRO bays, internal fleet garages | Standalone reel buyers; channel-stocked SKUs; expansion of existing installations |
Included Reels: | 4-reel arrangement: 614261, 614256, 614258, 614259 | 2-reel layout: 614256 (oil) + 614261 (grease) | All 5 individual SKUs (614256, 614258, 614259, 614260, 614261) |
Also Includes: | Matched ARO piston & diaphragm pumps, FRL units, fittings, CAD mounting templates, integrated O&M documentation | Matching stationary piston pumps, wall/overhead mounting brackets, control handles, mechanic-focused setup guide | Complete factory-standard accessory kit |
Key Guarantee: | Single system-wide warranty + 4-Week Build Guarantee | Single system-wide warranty | Standard ARO warranty |
Bundles and configurations
Segment
Service-truck builders & integrators in open-pit mining and heavy construction
Included Reels
4-reel arrangement: 614261, 614256, 614258, 614259
Also Includes
Matched ARO piston & diaphragm pumps, FRL units, fittings, CAD mounting templates, integrated O&M documentation
Key Guarantee
Single system-wide warranty + 4-Week Build Guarantee
Segment
Fixed maintenance workshops, industrial MRO bays, internal fleet garages
Included Reels
2-reel layout: 614256 (oil) + 614261 (grease)
Also Includes
Matching stationary piston pumps, wall/overhead mounting brackets, control handles, mechanic-focused setup guide
Key Guarantee
Single system-wide warranty
Segment
Standalone reel buyers; channel-stocked SKUs; expansion of existing installations
Included Reels
All 5 individual SKUs (614256, 614258, 614259, 614260, 614261)
Also Includes
Complete factory-standard accessory kit
Key Guarantee
Standard ARO warranty
