Pump Model** | Lower Pump Material | Container Suitability | Plunger Material | Upper Packings | Lower Packings | Lower Pump Model | Pump Service Kit |
AF0409C81BBW2 | Stainless Steel | Stub | 316 Stainless Steel | Buna ”N” | Buna ”N” | 1875C81BBW2 | K1875C81BB00 |
Simply Versatile
2-ball pumps are among the most versatile in the ARO® line. They are capable of handling applications from simple transfer to the extrusion of low- to medium- viscosity materials up to 100,000 centipoise (cPs) with fluid delivery up to 18.1 gpm (68.6 L/min).
Applications advantages of 2-balls:
Spray: 2-ball pumps deliver the constant flow rate and pressure needed for consistent and efficient coatings applications
Transfer & Supply: Depending on the model, some 2-ball pumps can achieve flow rates up to 18.1 gpm, providing dependable results
Extrusion: 2-ball pumps generate pressure to handle extrusion of low- to medium- viscosity
Lubrication: ARO® 2-balls pumps provide the flow and pressure required for moving light oils and grease lubricants
High Pressure Cleaning: ARO® Wash Pump Packages are portable and offer the right option for industrial cleaning applications
Materials advantages of 2-balls:
- Sheer sensitive materials: ARO® 2-ball pumps minimize friction points to prevent fluid shear, when compared to other similar pumping technologies
- Abrasive and high solid materials: ARO 2-ball pump minimize friction points and allow smooth passages to maintain fluid consistency
- Optional ceramic coating provides an even stronger defense against highly abrasive fluids like paint and glass-filled sealer
Specifications
Ratio | 9:1 |
Stroke | 4” (10.2 cm) |
Material Inlet | Barbed |
Material Outlet | 3/4” NPT(F) |
Air Inlet (female) | 1/2” NPT(F) |
Air Inlet Pressure Range psi (bar) | 0 - 150 (0 - 10.3) |
Fluid Pressure Range psi (bar) | 0 -1350 (0 - 93.1) |
Max Cycles/Minute | 60.0 |
Displacement/Cycle cu in (cm3) | 11.0 (180.2) |
Cycles/gal (L) | 21 (5.5) |
Flow @ 60 Cycles gpm (L/min) | 2.9 (10.8) |
Noise Level @ 60 psi dBA | 89.2 |
Weight* lb (kg) | 35 (15.9) |
Dimensions - 5-Gallon Unit
A* in (mm) | 34.12 (866.55) |
B in (mm) | 17.78 (451.7) |
C in (mm) | 11(279.4) |

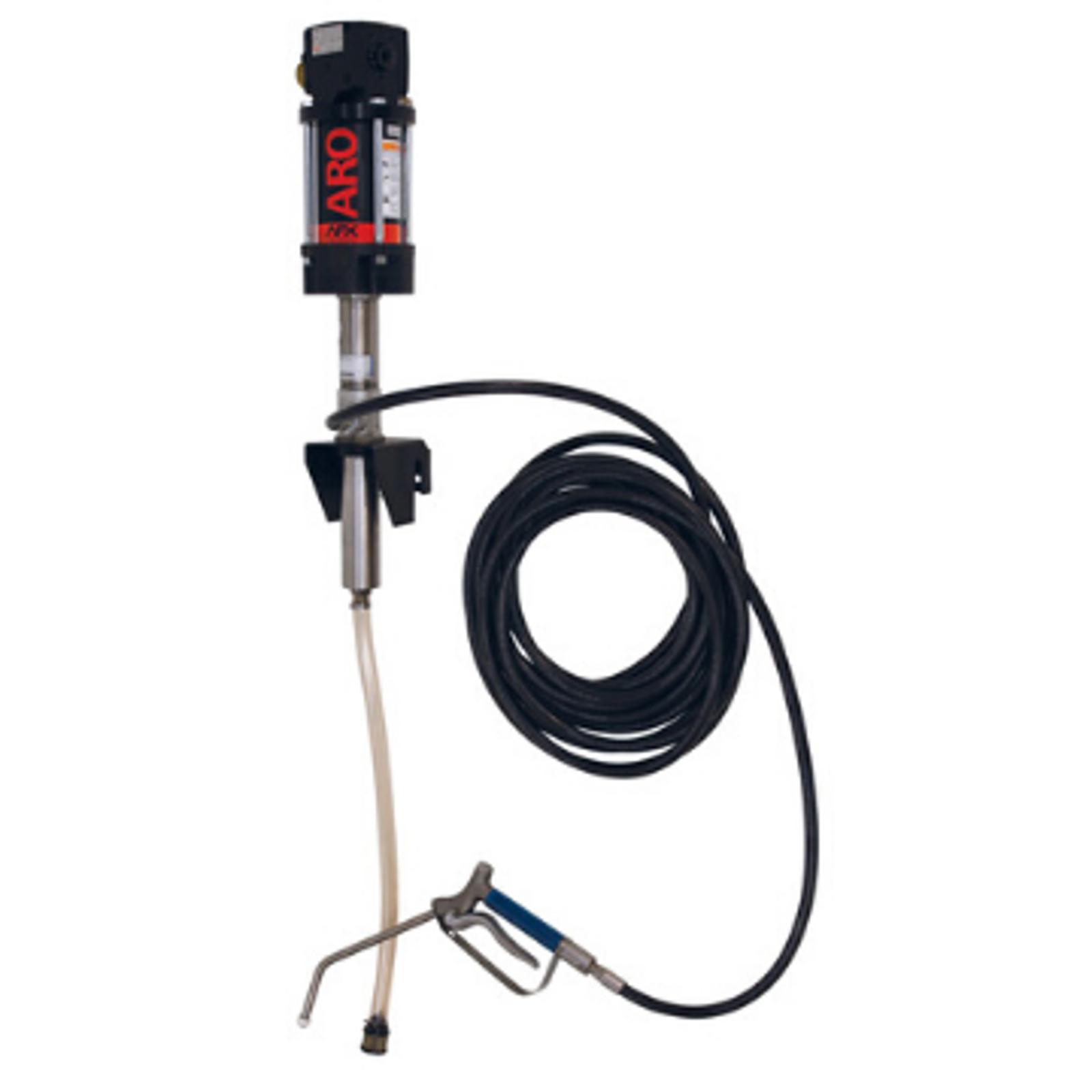

Wash Pump Package
Model No. | Package Type | Pump Model | Bracket Number | Suction Tube | Control Handle | Spray Tip |
WP0409C81BBW2000 | 5 Gallon Wash Package | AF0409C81BBW2 | 61113 | 61139-1 | 641523 | TP6250-18 |
