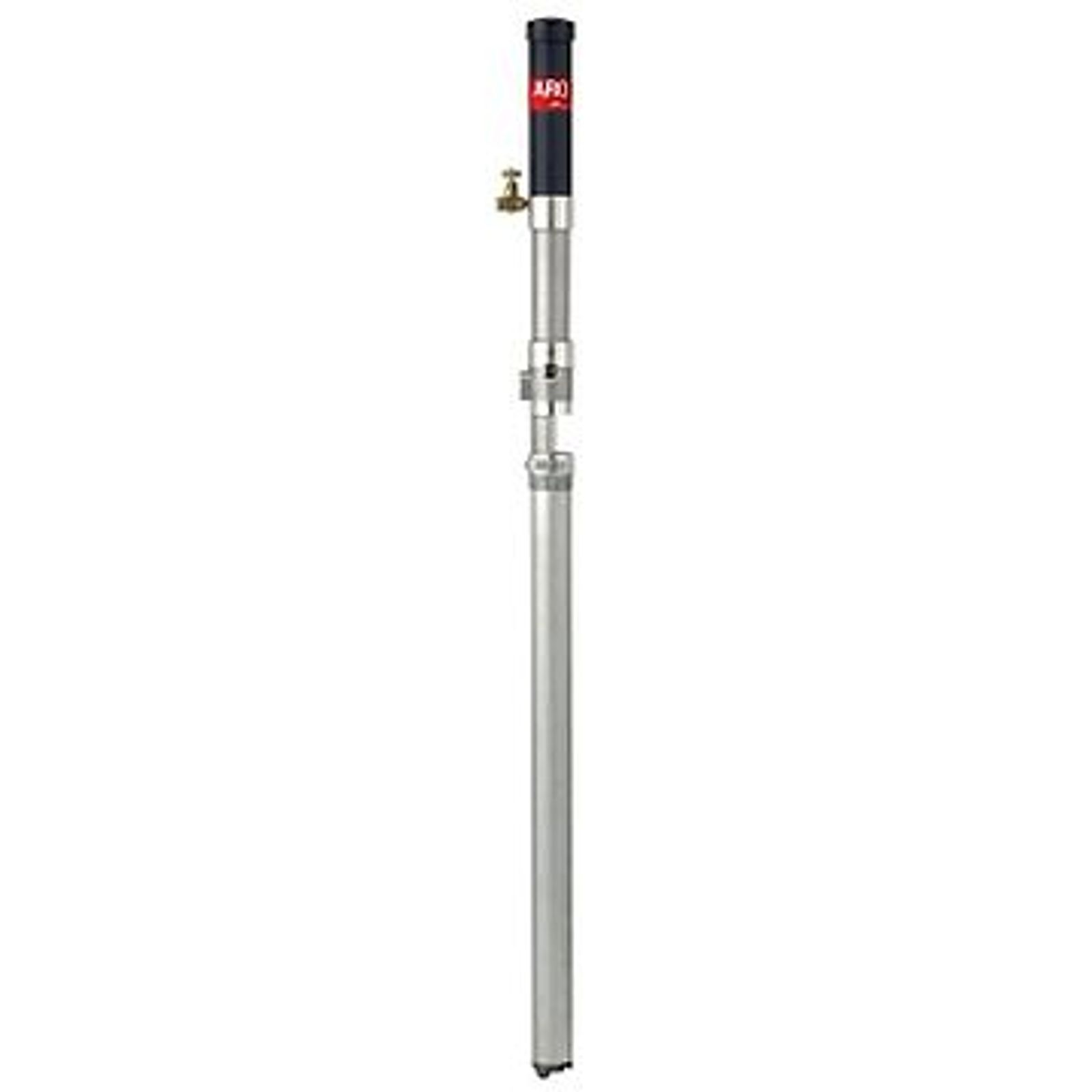

61204X-X 2-Ball Piston Pump & Packages

  • 1:1 Ratio
  • 2" Air Motor
  • 18 GPM (68.1 LPM) Max Flow
  • Max Fluid: 150 psi

Simply Versatile

2-ball pumps are among the most versatile in the ARO line. They are capable of handling applications from simple transfer to the extrusion of low- to medium- viscosity materials up to 100,000 centipoise (cPs) with fluid delivery up to 18.1 gpm (68.6 L/min).


Applications advantages of 2-balls:

Spray: 2-ball pumps deliver the constant flow rate and pressure needed for consistent and efficient coating applications
Transfer & Supply: Depending on the model, some 2-ball pumps can achieve flow rates up to 18.1 gpm, providing dependable results
Extrusion: 2-ball pumps generate pressure to handle extrusion of low- to medium- viscosity
Lubrication: ARO 2-balls pumps provide the flow and pressure required for moving light oils and grease lubricants
High Pressure Cleaning: ARO Wash Pump Packages are portable and offer the the right option for industrial cleaning applications


Materials advantages of 2-balls:

  • Sheer sensitive materials: ARO 2-ball pumps minimize friction points to prevent fluid shear, when compared to other similar pumping technologies
  • Abrasive and high solid materials: ARO 2-ball pump minimize friction points and allow smooth passages to maintain fluid consistency
  • Optional ceramic coating provides an even stronger defense against highly abrasive fluids like paint and glass-filled sealer

Pump Model**

Lower Pump Material

Container Suitability

Type

Plunger Material

Upper Packings

Lower Packings

Pump Service Kit

612041-1

Carbon Steel

Nickel-Plated

55 Gallon (208.2 L)

Wall mount or drum

Carbon Steel

Nitrile

Nitrile

612041-3

Carbon Steel

Nickel-Plated

55 Gallon (208.2 L)

Wall mount or drum

Carbon Steel

PTFE

PTFE

612042-1

Carbon Steel

Nickel-Plated

275 Gallon (1041 L)

Wall mount or drum

Carbon Steel

Nitrile

Nitrile

Ratio

1:1

Stroke

2”

Material Inlet

Immersed

Material Outlet

3/4” NPT(F)

Air Inlet (female)

1/4” NPT(F)

Air Inlet Pressure Range psi (bar)

0 – 150 (0 – 10.3)

Fluid Pressure Range psi (bar)

0 – 150 (0 – 10.3)

Max Cycles/Minute

75.0

Displacement/Cycle cu in (cm3)

18.8 (308.0)

Cycles/gal (L)

12.3 (3.3)

Flow @ 75 Cycles gpm (L/min)

90 (3.0)

Noise Level @ 60 psi dBA

9.0 (34.1)

Weight* lb (kg)

612041-1

Dimensions

A in (mm)

B in (mm)

612041-X

54 (1371.6)

34.625 (879.5)

612042-X

64.25 (1631.9)

44.875 (1139.8)

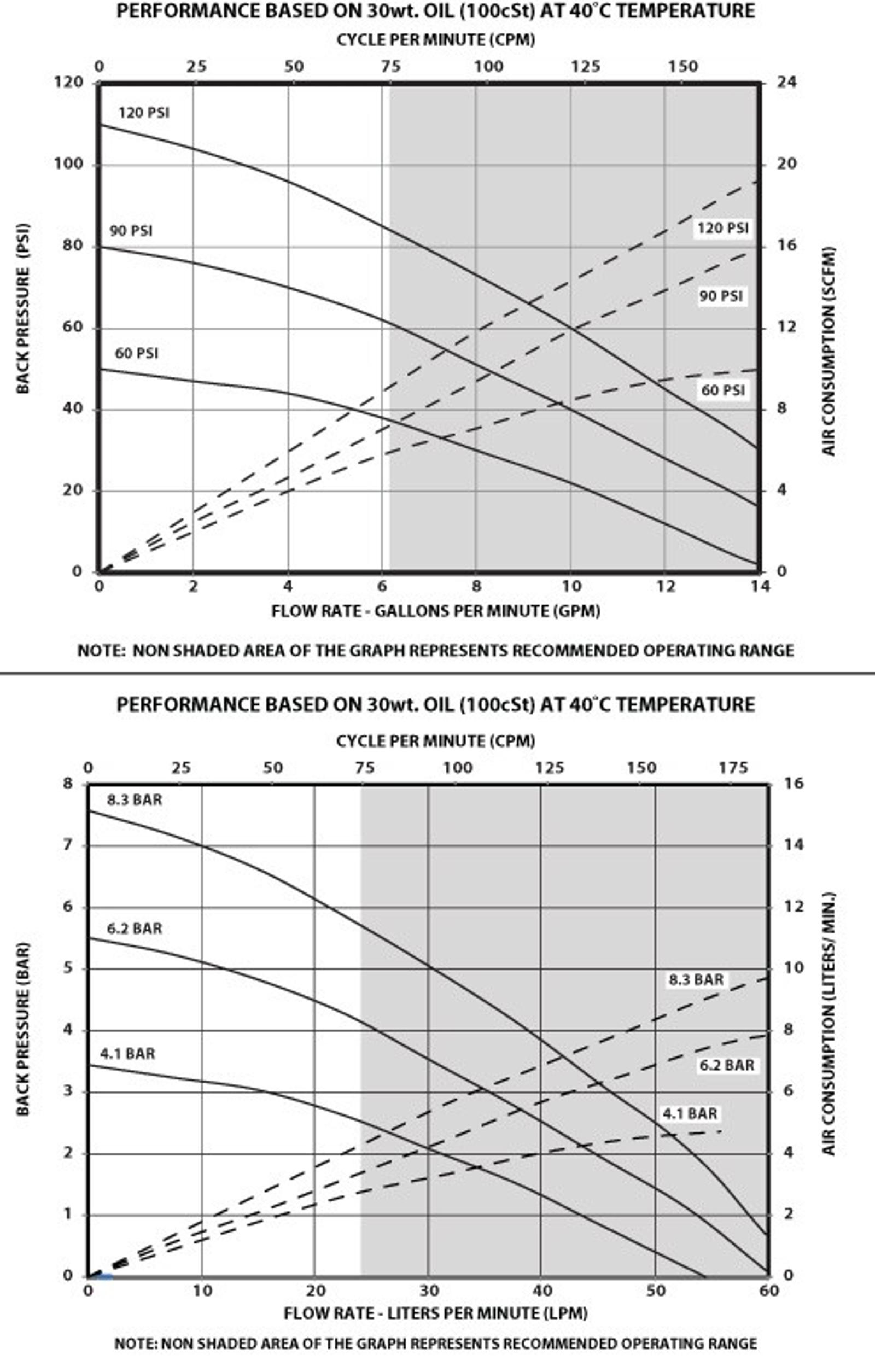

61204x-x Piston Pumps Flow Rate Chart
