Soft Start Valve | FRL Accessories | ARO Fluid Handling

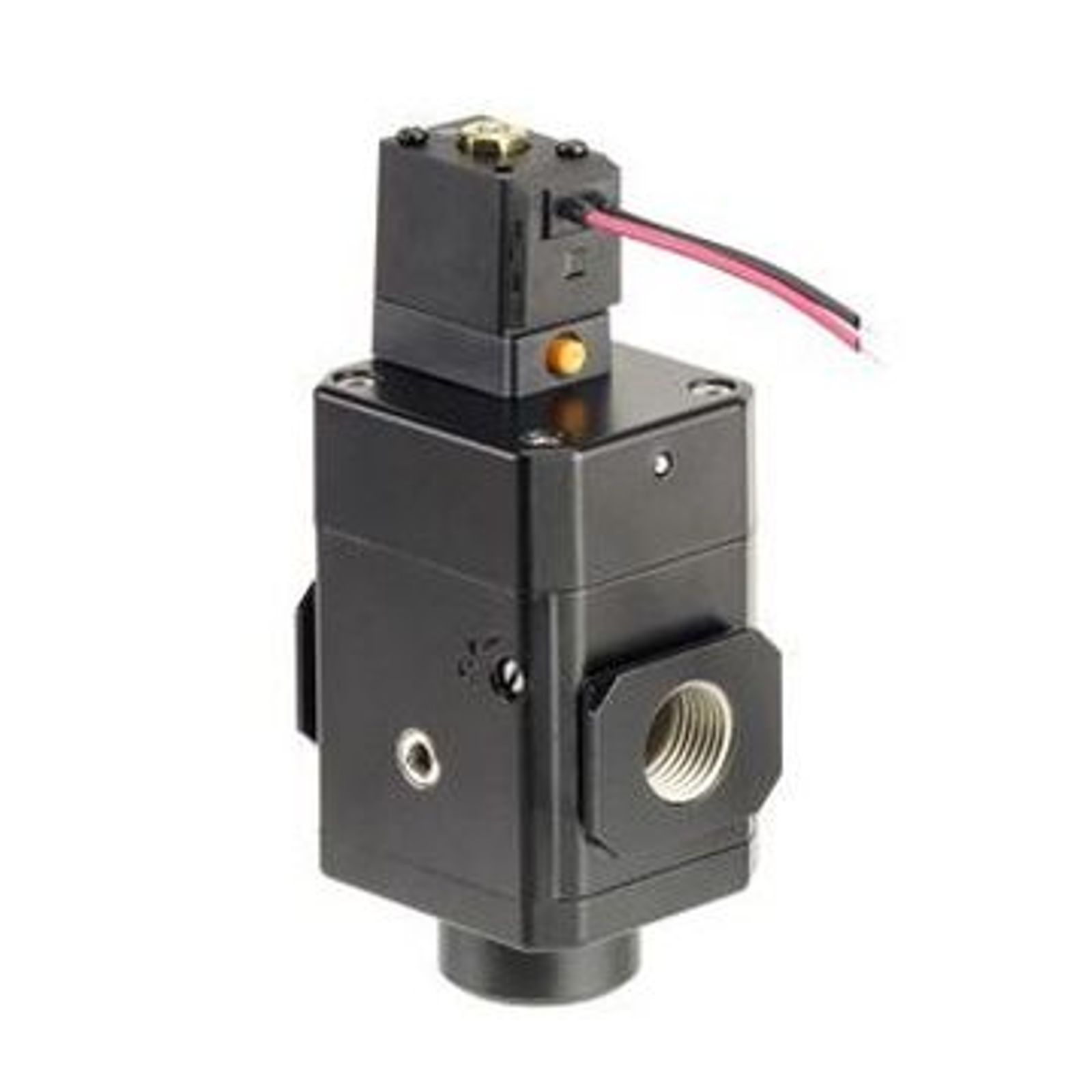

Soft Start Valve

ARO Soft Start Valves are designed to prevent air surge or pressure spikes during machine start-up by allowing the pressure to build gradually.

Features

Prevents air surge on machine start-up by allowing pressure to build gradually

Modular construction
Utilize modular clamp spacers to connect to other components
Threaded and be connected directly to piping
2 year warranty

Technical Data

Operating Pressure: 44-130 psi (3-9 bar)
Gauge Port: 1/8'' NPT
Manual Override: Locking
Voltage Allowance: -15% - 10%
Consumption (AC) Inrush: 5.6VA (50 Hz), 5.0VA (60 Hz)
Consumption (AC) Holding: 3.3VA (50 Hz), 2.3VA (60 Hz)
Consumption (DC): 1.8W / 2W (with lamp)
Connection: Din
Effective Orifice Size: P->A = .098 sq. in. (63 mm²) A->R = .068 sq. in. (44 mm²)
