AF0409C Series 2-Ball Piston Pump

9:1 Ratio
Max Flow: 2.8 GPM (10.5 LPM)
Max Fluid Pressure: 1,350 psi

Available Models

Pump Model**	Lower Pump Material	Container Suitability	Plunger Material	Upper Packings	Lower Packings	Lower Pump Model	Pump Service Kit
AF0409C11FF22	316 Stainless Steel	5 Gallon	316 Stainless Steel	UHMW-PE	UHMW-PE	1875C11FF22	K18755C11FF20
AF0409C11FF29	316 Stainless Steel	5 Gallon	304 Stainless Steel	Ceramic Coated	UHMW-PE	UHMW-PE	1875C11FF29
AF0409C11SS22	316 Stainless Steel	5 Gallon	316 Stainless Steel	Ceramic Coated Tube	Virgin PTFE	Virgin PTFE	1875C11SS22
AF0409C11VF2E	316 Stainless Steel	5 Gallon	316 Stainless Steel	Ceramic Coated Tube	Viton	UHMW-PE	1875C11VF2E
AF0409C11VF29	316 Stainless Steel	5 Gallon	304 Stainless Steel	Ceramic Coated	Viton	UHMW-PE	1875C11VF29
AF0409C51SS22	316 Stainless Steel	55 Gallon	316 Stainless Steel	Virgin PTFE	Virgin PTFE	1875C51SS22	K18755C11SS20

**Add “-1” to Model No. for Ball Valve Regulator

Simply Versatile

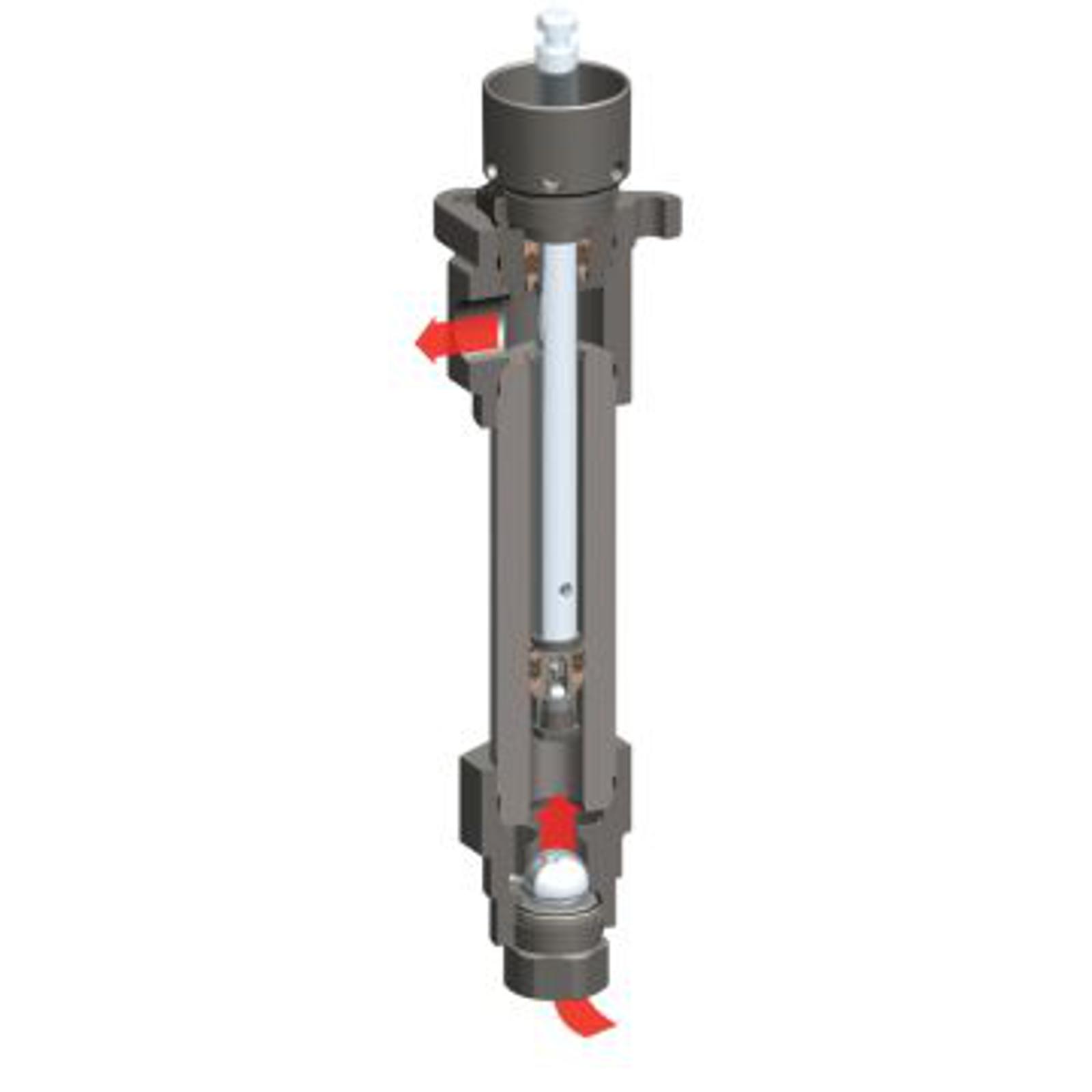

2-ball pumps are among the most versatile in the ARO® line. They are capable of handling applications from simple transfer to the extrusion of low- to medium- viscosity materials up to 100,000 centipoise (cPs) with fluid delivery up to18.1 gpm (68.6 L/min).

Applications advantages of 2-balls:

Spray: 2-ball pumps deliver the constant flow rate and pressure needed for consistent and efficient coatings applications

Transfer & Supply: Depending on the model, some 2-ball pumps can achieve flow rates up to 18.1 gpm, providing dependable results

Extrusion: 2-ball pumps generate pressure to handle extrusion of low- to medium- viscosity

Lubrication: ARO® 2-balls pumps provide the flow and pressure required for moving light oils and grease lubricants

High Pressure Cleaning: ARO® Wash Pump Packages are portable and offer the right option for industrial cleaning applications

Materials advantages of 2-balls:

Sheer sensitive materials: ARO® 2-ball pumps minimize friction points to prevent fluid shear, when compared to other similar pumping technologies
Abrasive and high solid materials: ARO 2-ball pump minimize friction points and allow smooth passages to maintain fluid consistency
Optional ceramic coating provides an even stronger defense against highly abrasive fluids like paint and glass-filled sealer

Specifications

Ratio	9:1
Stroke	4” (10.2 cm)
Material Inlet	1-1/4” NPT(F)
Material Outlet	3/4” NPT(F)
Air Inlet (female)	1/2” NPT(F)
Air Inlet Pressure Range psi (bar)	0 - 150 (0 - 10.3)
Fluid Pressure Range psi (bar)	0 -1350 (0 - 93.1)
Max Cycles/Minute	60.0
Displacement/Cycle cu in (cm3)	11.0 (180.2)
Cycles/gal (L)	21 (5.5)
Flow @ 60 Cycles gpm (L/min)	2.9 (10.8)
Noise Level @ 60 psi dBA	89.2
Weight* lb (kg)	5 Gallon - 35 (15.9)55 Gallon - 45 (20.4)

Dimensions - 5-Gallon Unit

A* in (mm)	34.12 (866.55)
B in (mm)	17.78 (451.7)
C in (mm)	11(279.4)

Dimensions - 55-Gallon Unit

A* in (mm)	57.46 (1459.48)
B in (mm)	41.12 (1044.55)
C in (mm)	34.34 (872.34)

*For models without ball valve regulator subtract 2.08 in (52.83 mm)

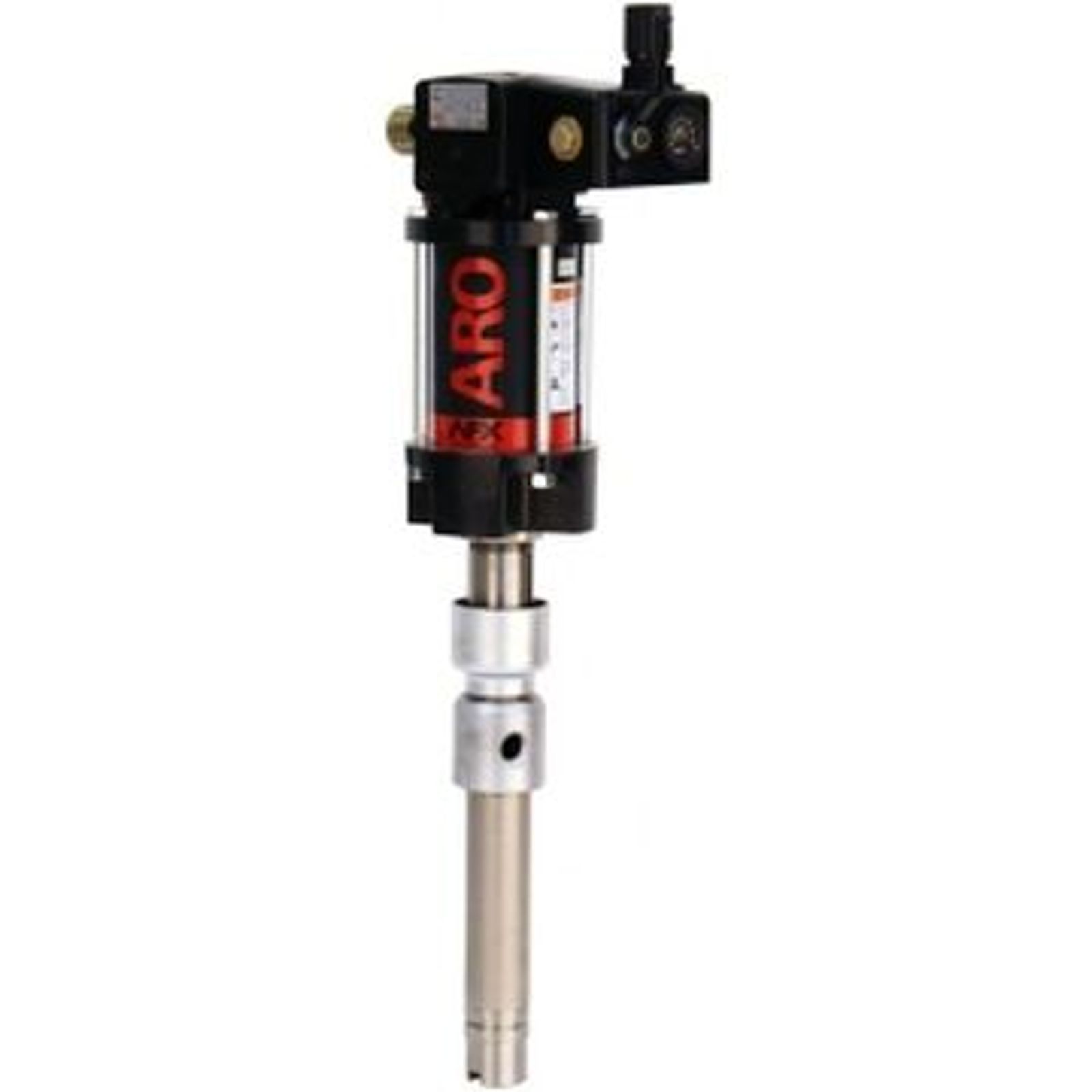

Drum Cover Agitator w/Lift55 Gallon

Model No.	Package Type	Pump Model	Lift Model	Drum Cover	Material Hose
AL0409C51FF22002	Drum Cover w/Agitator Lift	AF0409C51FF22	640067	66197	623600-10

Recommended Accessories

Extrusion Guns
651533 For low to medium viscosity fluids 1/4” NPS (M) inlet
641523-1Wetted parts are 300 Series SS with PTFE packings

Extrusion Gun Nozzle Kits
66541-6 Orifice.063” (1.63 mm), 66541-9 Orifice .093” (2.36 mm),
66541-2Orifice .125” (3.17 mm)

Swivel
636085 Straight, 3/8” (M) x 3/8” (F) / fabric with neoprene / 8,000 psi (552 bar) max. working pressure

636088 Z-360°, 3/8” (M) x 3/8” (F) / fabric with neoprene /8,000 psi (552 bar) max. working pressure

75364 Straight, for use with 651533 gun / 1/4”-18 NPTF to1/4”-18 NPSM /10,000 psi (690 bar) max working pressure

Material Filters 1/2” F (2) inlet 1/2” F (1) outlet /6,000 psi (414 bar) max. / 200 micron
651420-70 for Carbon Steel
651422-70 for Stainless Steel

3/8” Fluid Pressure Regulators
651780-A3A-B Regulated400 – 1,250 psi (28 – 86 bar) /3,000 psi (207 bar) max. inlet/ stainless steel
651780-B1A-B Regulated 400 – 1,250psi (28 – 86 bar) /3,000 psi (207 bar) max. inlet / carbon steel
651780-B1B-B Regulated 1,000 – 3,000 psi (69 –345 bar) /6,000 psi (414 bar) max. inlet / carbon steel
651780-B3R-B Regulated 400 – 5,000 psi (28 – 345 bar) /6,000 psi (414 bar) max. inlet / stainless steel
