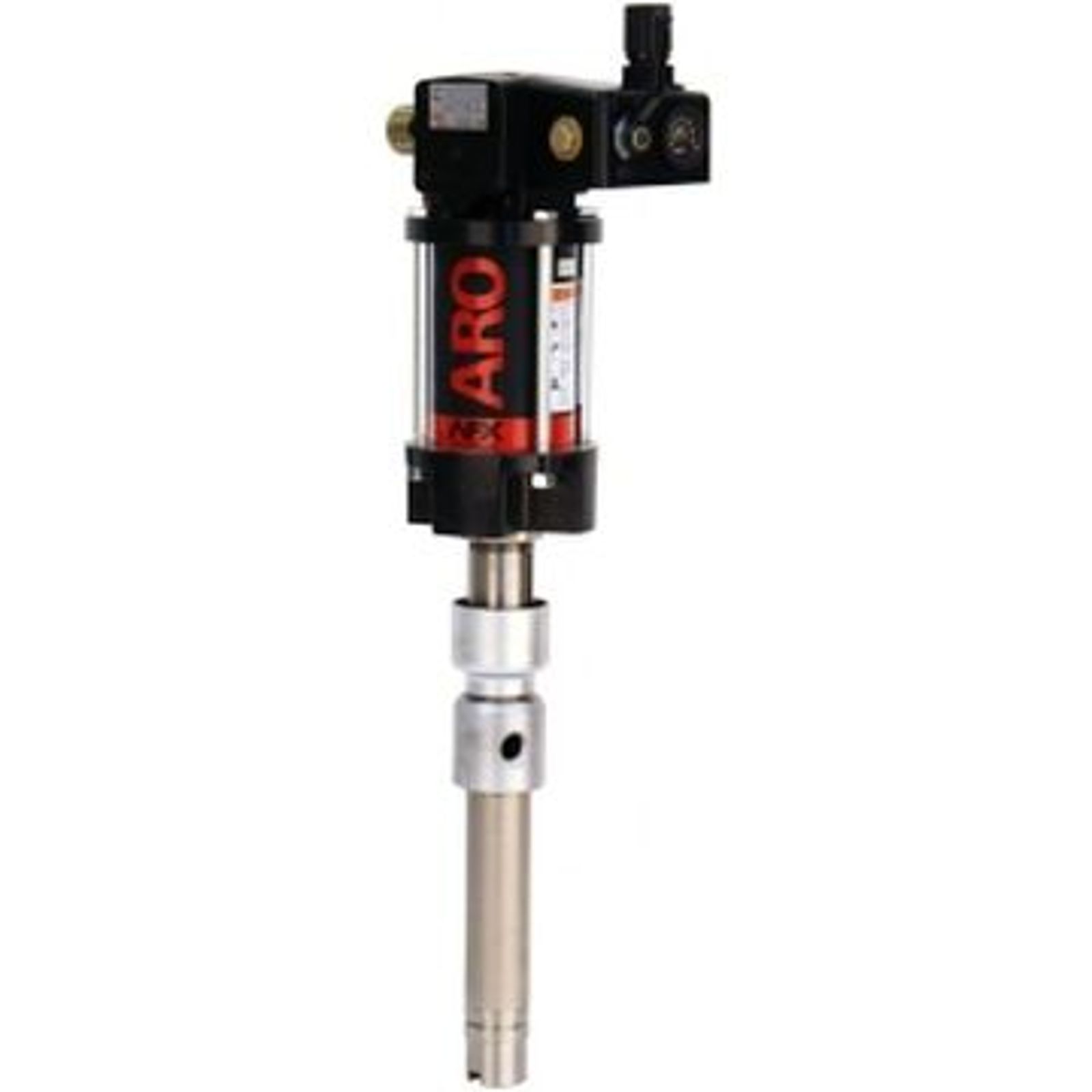

AF0409A Series 2-Ball Piston Pumps

  • 9:1 Ratio
  • Max Flow: 2.8 GPM (10.5 LPM)
  • Max Fluid Pressure: 1,350 psi

Simply Versatile

2-ball pumps are among the most versatile in the ARO line. They are capable of handling applications from simple transfer to the extrusion of low- to medium- viscosity materials up to 100,000 centi poise (cPs) with fluid delivery up to 18.1 gpm (68.6 L/min).

Applications advantages of 2-balls:

Spray: 2-ball pumps deliver the constant flow rate and pressure needed for consistent and efficient coatings applications

Transfer & Supply: Depending on the model, some 2-ball pumps can achieve flow rates up to 18.1 gpm, providing dependable results

Extrusion: 2-ball pumps generate pressure to handle extrusion of low-to medium-viscosity

Lubrication: ARO 2-balls pumps provide the flow and pressure required for moving light oils and grease lubricants

High Pressure Cleaning: ARO WashPump Packages are portable and offer the right option for industrial cleaning applications

Materials advantages of 2-balls:

  • Sheer sensitive materials: ARO 2-ball pumps minimize friction points to prevent fluid shear, when compared to other similar pumping technologies
  • Abrasive and high solid materials: ARO 2-ball pump minimize friction points and allow smooth passages to maintain fluid consistency
  • Optional ceramic coating provides an even stronger defense against highly abrasive fluids like paint and glass-filled sealer

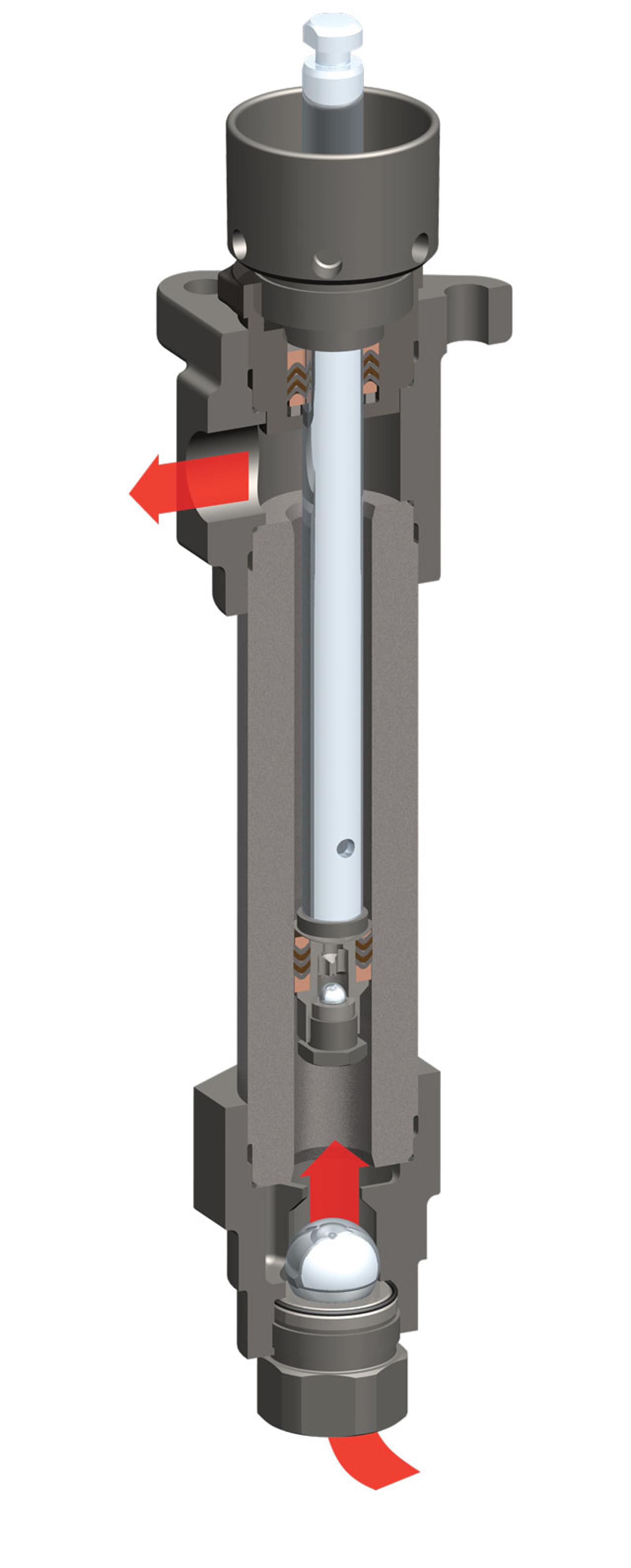

piston pump AF0423 flow rate

Pump Model**

Lower Pump Material

Container Suitability

Plunger Material

Upper Packings

Lower Packings

Lower Pump Model

Pump Service Kit

AF0409C11FF22

316 Stainless Steel

5 Gallon

316 Stainless Steel

UHMW-PE

UHMW-PE

1875C11FF22

K18755C11FF20

AF0409C11FF29

316 Stainless Steel

5 Gallon

304 Stainless Steel

Ceramic Coated

UHMW-PE

UHMW-PE

1875C11FF29

AF0409C11SS22

316 Stainless Steel

5 Gallon

316 Stainless Steel

Ceramic Coated Tube

Virgin PTFE

Virgin PTFE

1875C11SS22

AF0409C11VF2E

316 Stainless Steel

5 Gallon

316 Stainless Steel

Ceramic Coated Tube

Viton

UHMW-PE

1875C11VF2E

AF0409C11VF29

316 Stainless Steel

5 Gallon

304 Stainless Steel

Ceramic Coated

Viton

UHMW-PE

1875C11VF29

AF0409C51SS22

316 Stainless Steel

55 Gallon

316 Stainless Steel

Virgin PTFE

Virgin PTFE

1875C51SS22

K18755C11SS20

Ratio

9:1

Stroke

4” (10.2 cm)

Material Inlet

See Dimensions

Material Outlet

3/4” NPT(F)

Air Inlet (female)

1/2” NPT(F)

Air Inlet Pressure Range psi (bar)

0 - 150 (0 - 10.3)

Fluid Pressure Range psi (bar)

0 -1350 (0 - 93.1)

Max Cycles/Minute

60.0

Displacement/Cycle cu in (cm3)

11.0 (180.2)

Cycles/gal (L)

21 (5.5)

Flow @ 60 Cycles gpm (L/min)

2.8 (10.5)

Noise Level @ 60 psi dBA

80.0

Weight* lb (kg)

55 Gallon Unit: 49 (22.2)Remote Mount: 35 (15.8)

A* in (mm)

61.74 (1568.25)

B in (mm)

38.53 (978.71)

Material Inlet

Immersed -

A* in (mm)

35.21 (894.33)

B in (mm)

12.00 (304.80)

Material Inlet

1-1/2” NPT -

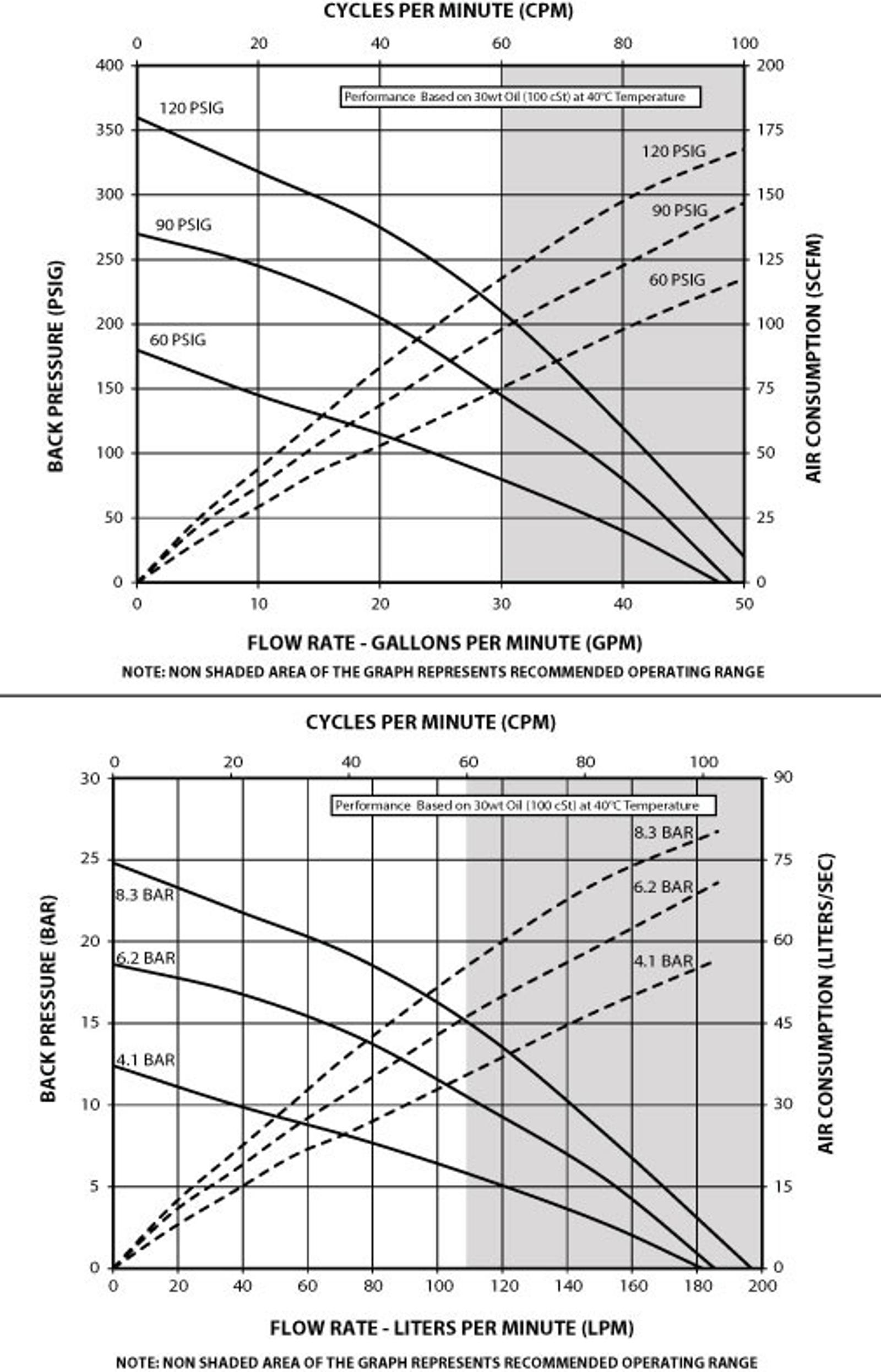

piston pump AF0411 flow rate
65031X-X Piston Pump Dimensions

Recommended Accessories

Extrusion Guns
651533 For low- to medium-viscosity fluids 1/4” NPS (M) inlet
641523-1 Wetted parts are 300 Series SS with PTFE packings

Extrusion Gun Nozzle Kits
66541-6 Orifice .063” (1.63 mm), 66541-9 Orifice .093” (2.36 mm),
66541-2Orifice .125” (3.17 mm)

Swivel
636085 Straight, 3/8” (M) x 3/8” (F) / fabric with neoprene / 8,000 psi (552 bar) max. working pressure

636088 Z-360°, 3/8” (M) x 3/8” (F) / fabric with neoprene / 8,000 psi (552 bar) max. working pressure

75364 Straight, for use with 651533 gun / 1/4”-18 NPTF to 1/4”-18 NPSM /
10,000 psi (690 bar) max working pressure

Material Filters
1/2” F (2) inlet 1/2” F (1) outlet / 6,000 psi (414 bar) max. / 200 micron
651420-70 for Carbon Steel
651422-70 for Stainless Steel

3/8” Fluid Pressure Regulators
651780-A3A-B Regulated 400 - 1,250 psi (28 - 86 bar) /
3,000 psi (207 bar) max. inlet / stainless steel
651780-B1A-B Regulated 400 – 1,250 psi (28 – 86 bar) /
3,000 psi (207 bar) max. inlet / carbon steel
651780-B1B-B Regulated 1,000 – 3,000 psi (69 – 345 bar) /
6,000 psi (414 bar) max. inlet / carbon steel
651780-B3R-B Regulated 400 – 5,000 psi (28 – 345 bar) /
6,000 psi (414 bar) max. inlet / stainless steel

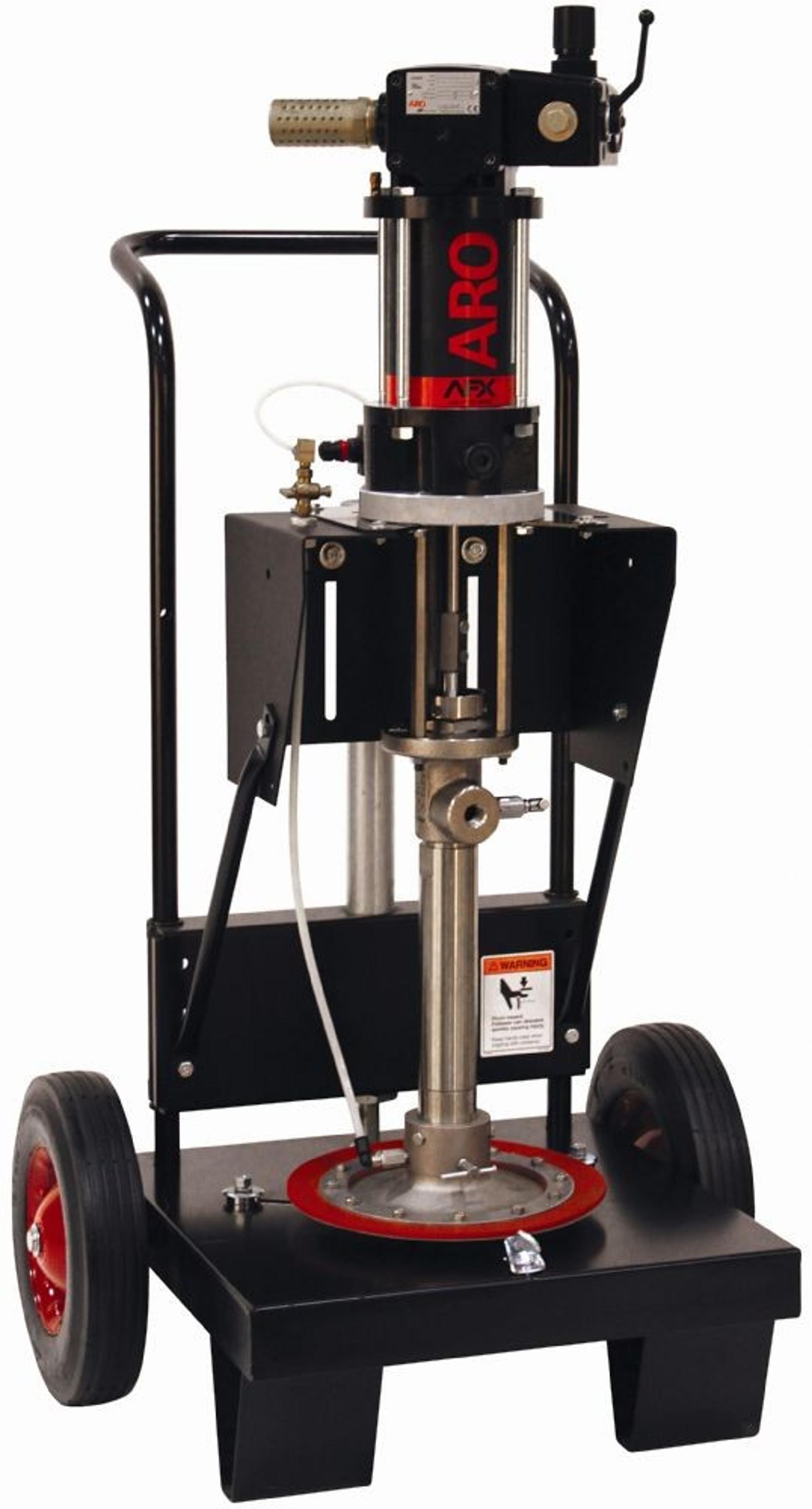

piston pump AF0412 cart mount
