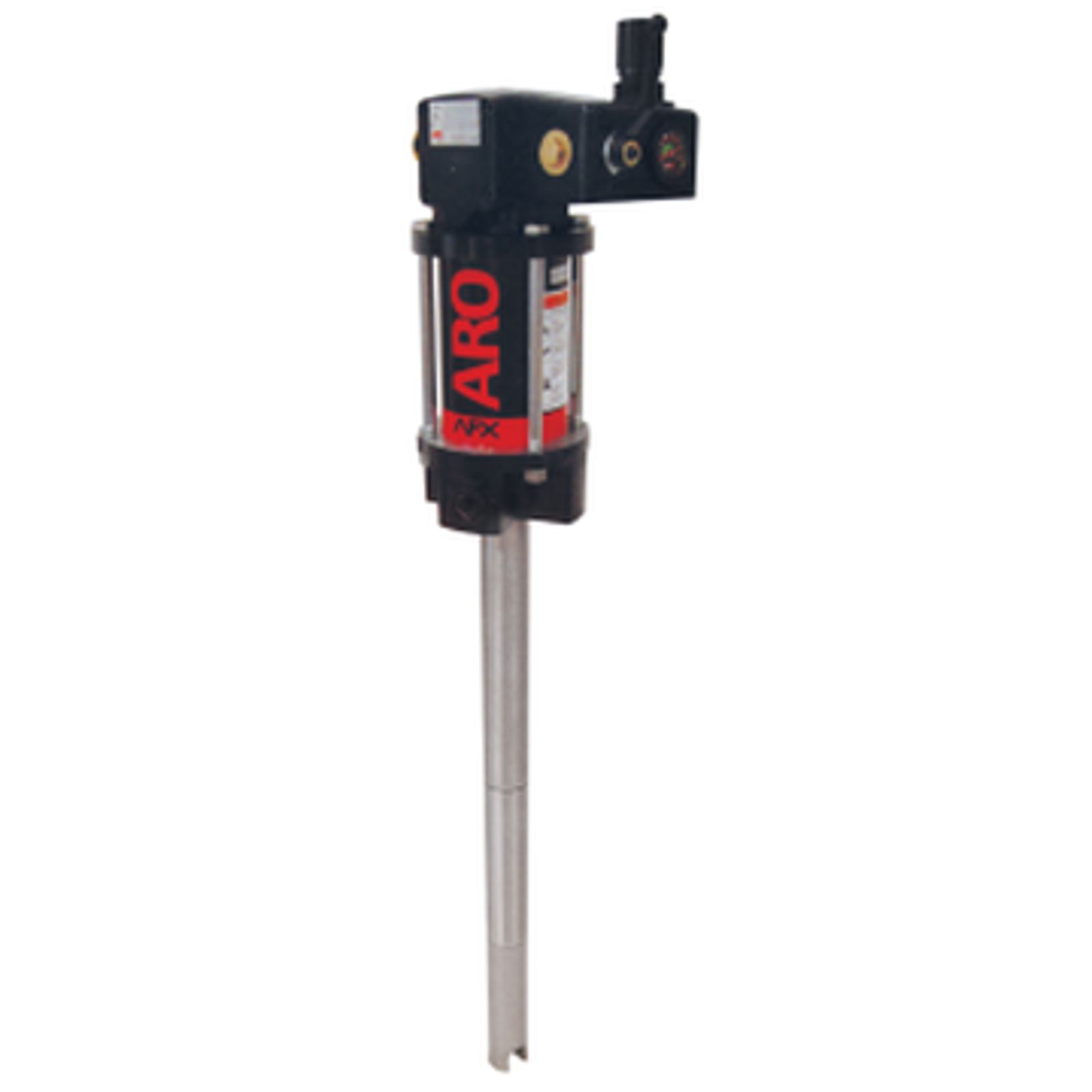

ARO lubrication pumps handle motor and gear oils, transmission fluid, and standard and industrial greases. Pumps are offered from 3:1 to 100:1 ratios in order to meet the requirements of any application - commercial vehicle servicing to lubricating heavy mining equipment.
Ratio | 50:1 |
Stroke | 4” (40.2 cm) |
Material Outlet | 1/2” NPT(F) |
Air Inlet (female) | 1/2” NPT(F) |
Air Inlet Pressure Range psi (bar) | 0 - 150 (0 - 10) |
Fluid Pressure Range psi (bar) | 0 - 7500 (0 - 517) |
Max Delivery/Minute @ 75 cycles | 5.2 lbs (2.35 kg) |
Noise Level @ 60 psi dBA | 81.8 |
Material Inlet | Immersed |
DCX Series Drum Cover
DMX Series Drum Mount
Model No. | Package Type | Pump Model | Drum Cover | Material Hose | Bung Adapter | Material Hose |
DC0450L53PKL1000 | 55 Gallon Drum Cover | AF0450L53PKL1 | 60898 | 4148 | 624401-8 | 621501-5 |
DM0450L53PKL1000 | 55 Gallon Drum Mount | AF0450L53PKL1 | - | 4148 | 624401-8 | 621501-5 |
