Maximum Flow gpm (lpm): 12 (45.4)
Maximum Discharge Pressure psi (bar): 100 (6.9)
Fluid Ports Inlet/Outlet (bsp): 1/2” (F) - In/Out
Material of Construction: Aluminum, Stainless Steel
Maximum Solids in (mm): 3/32 (2.4)
Maximum Dry Suction Lift ft (m): 15 (4.5)

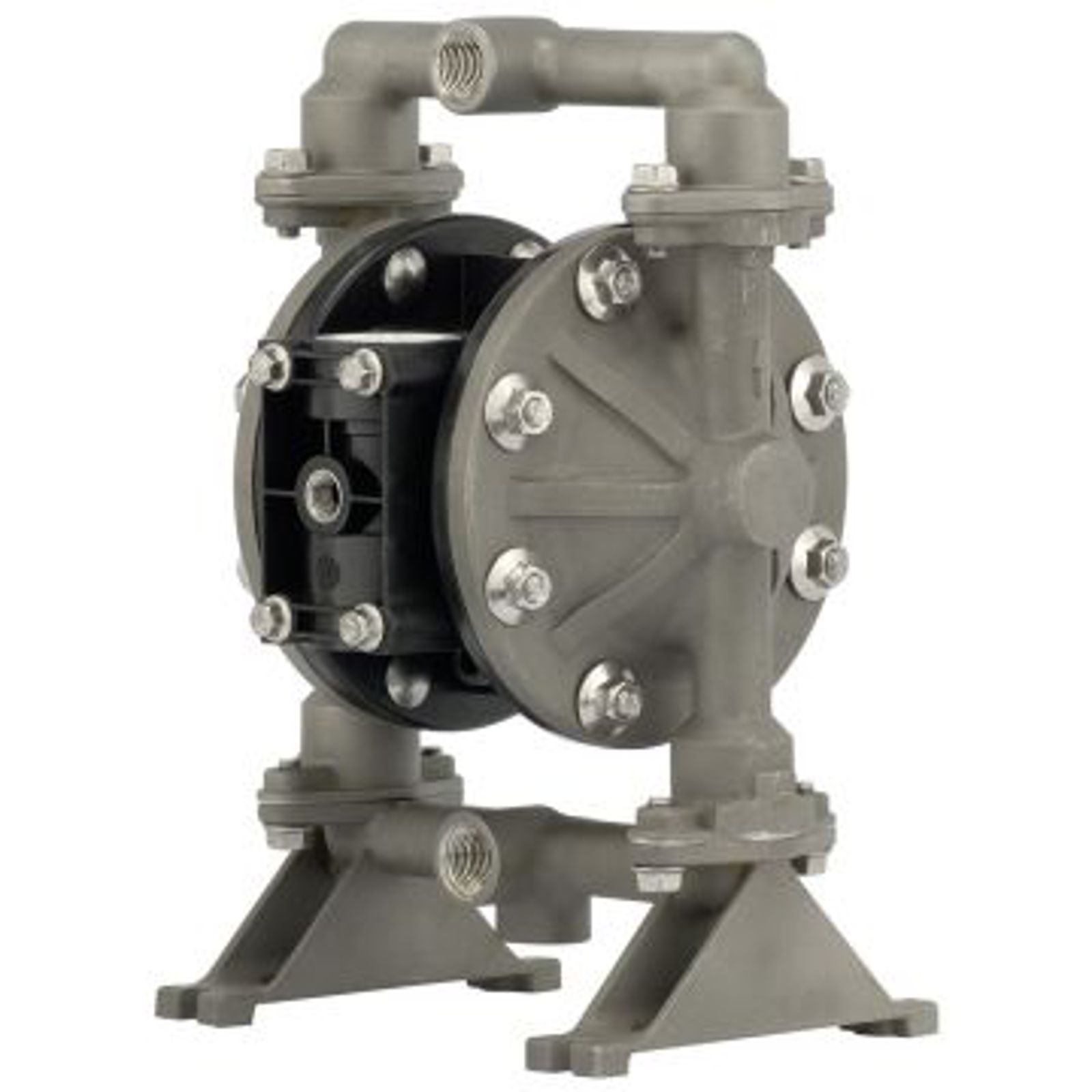

Part of our Compact Series of pumps, our 1/2” metallic pumps feature big performance in a small package. They achieve flow rates up to 14.4 GPM (54.5 LPM) and offer a wide range of material and porting configurations.
Available with diaphragms.
Designed to meet your OEM application needs.
Manufactured for complete corrosion resistance - constructed with polypropylene or aluminum center body, standard stainless steel fasteners, and your choice of anodized aluminum or stainless steel casing materials
Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal
Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
Versatility - Compact, heavy duty design enables usage in versatile locations including limited space
Environmentally Sound - Bolted construction for leak-free fluid handling
Serviceability - Ease of service through modular design
(ball) 13 g.p.m. (49.2 l.p.m.)
(duckbill) 10 g.p.m. (37.9 l.p.m.)
Displacement per cycle:
(ball) 0.04 g.p.m. (0.15 l.p.m.)
(duckbill) 0.032 g.p.m. (0.12 l.p.m.)
Air Inlet: (Female) 1/4 - 18 N.P.T.F. - 1
Fluid Inlet/Outlet: 1/2 - 14 N.P.T.F. - 1
Max. operating pressure: 100 psi (6.9 bar)
Suspended solids max. dia.:
(ball) 3/32” (2.4-mm)
Weight: lbs (kg)
Polypropylene 7.2 (3.3)
Groundable Acetal 8.8 (4.0)
Kynar PVDF 9.5 (4.3)
Maximum dry suction lift ft(m) : 15 (4.6)
Sound Level: 70 PSI 60 Cycles/Min 71.1 db(A)
Muffler: Integral, Included
Drum Pump Packages:
Perfect for removing your chemical from any 55-gallon drum.
Complete dispense drum pump will move your chemical from any 55-gallon drum to it's finishing application location.
Perfect pump package for transferring your fluid from location to location
