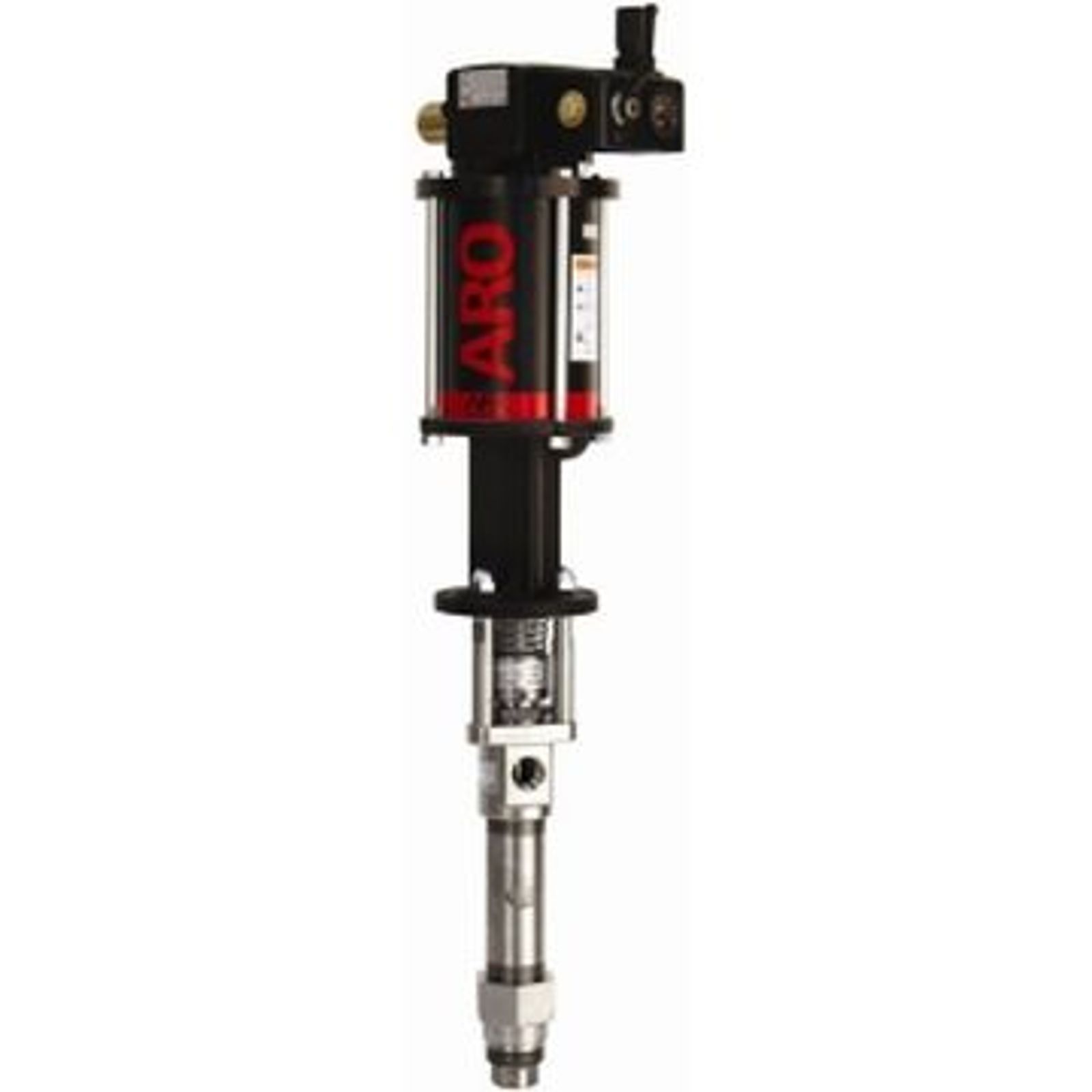

AF0623G Series 2-Ball Piston Pumps

  • 23:1 Ratio
  • Max Flow: 3.8 GPM (14.3 LPM)
  • Max Fluid Pressure: 3,495 psi

Simply Versatile

2-ball pumps are among the most versatile in the ARO line. They are capable of handling applications from simple transfer to the extrusion of low- to medium- viscosity materials up to 100,000 centipoise (cPs) with fluid delivery up to 18.1 gpm (68.6 L/min).


Applications advantages of 2-balls:

Spray: 2-ball pumps deliver the constant flow rate and pressure needed for consistent and efficient coating applications
Transfer & Supply: Depending on the model, some 2-ball pumps can achieve flow rates up to 18.1 gpm, providing dependable results
Extrusion: 2-ball pumps generate pressure to handle extrusion of low- to medium- viscosity
Lubrication: ARO 2-balls pumps provide the flow and pressure required for moving light oils and grease lubricants
High Pressure Cleaning: ARO Wash Pump Packages are portable and offer the the right option for industrial cleaning applications


Materials advantages of 2-balls:

  • Sheer sensitive materials: ARO 2-ball pumps minimize friction points to prevent fluid shear, when compared to other similar pumping technologies
  • Abrasive and high solid materials: ARO 2-ball pump minimize friction points and allow smooth passages to maintain fluid consistency
  • Optional ceramic coating provides an even stronger defense against highly abrasive fluids like paint and glass-filled sealer

Pump Model**

Lower Pump Material

Plunger Material

Upper Packings

Lower Packings

Lower Pump Model

Pump Service Kit

AF0623G11FF47

300 Series SS w/Tungsten Carbide Seat

17-4 SS w/Hard Chrome

UHMW-PE

UHMW-PE

66300-C43

637305-C43

AF0623G11KK47

300 Series SS w/Tungsten Carbide Seat

17-4 SS w/Hard Chrome

Glass Filled PTFE

Glass Filled PTFE

66300-343

637305-343

AF0623G11KK48

300 Series SS w/Tungsten Carbide Seat

17-4 SS

Ceramic Coated

Glass Filled PTFE

Glass Filled PTFE

66300-34B

637305-343

AF0623G11HH47

300 Series SS w/Tungsten Carbide Seat

17-4 Stainless Steel w/Hard Chrome

UHMW-PE/Leather (Staggered)

UHMW-PE/Leather (Staggered)

66300-G43

637305-G43

AF0623G11HH48

300 Series SS w/Tungsten Carbide Seat

17-4 Stainless Steel

Ceramic Coated

UHMW-PE/Leather (Staggered)

UHMW-PE/Leather (Staggered)

66300-G4B

637305-G43

AF0623G11GF47

300 Series SS w/Tungsten Carbide Seat

17-4 Stainless Steel w/Hard Chrome

UHMW-PE/Glass Filled PTFE (Staggered)

UHMW-PE

66300-P43

637305-P43

AF0623G11RK48

300 Series SS w/Tungsten Carbide Seat

17-4 Stainless Steel

Ceramic Coated

Glass Filled PTFE/UHMW-PE (Staggered)

Glass Filled PTFE

66300-R4B

637305-R43

AF0623G11RK47

300 Series SS w/Tungsten Carbide Seat

17-4 Stainless Steel

Glass Filled PTFE/UHMW-PE (Staggered)

Glass Filled PTFE

66300-R43

637305-R43

AF0623G11FF48

300 Series SS w/Tungsten Carbide Seat

17-4 SS

Ceramic Coated

UHMW-PE

UHMW-PE

66300-C4B

637305-C43

AF0623G11GF48

300 Series SS w/Tungsten Carbide Seat

17-4 Stainless

Ceramic Coated

UHMW-PE/Glass Filled PTFE (Staggered)

UHMW-PE

66300-P4B

637305-P43

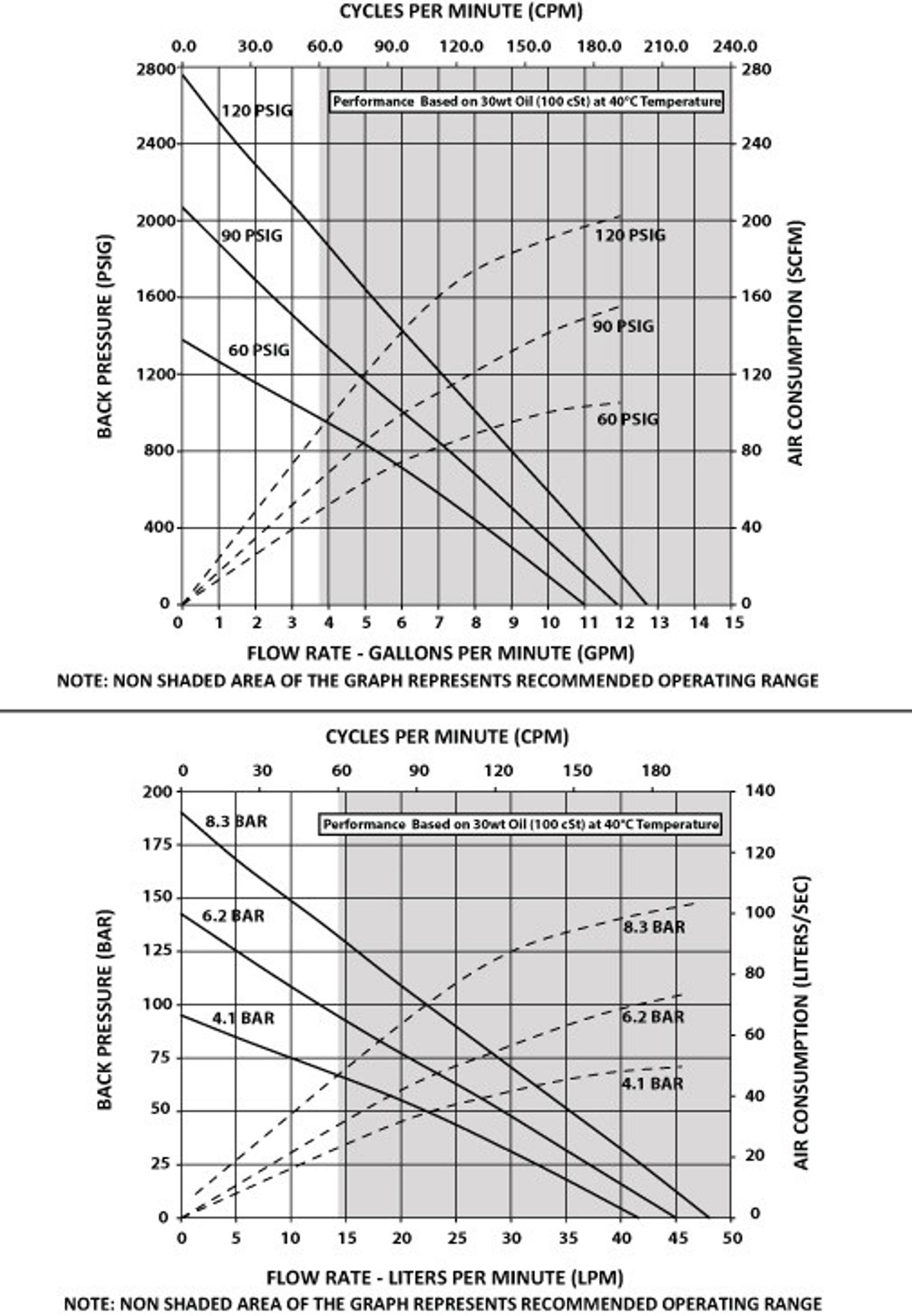

piston pump AF0623G flow rate

Ratio

23:1

Stroke

6” (15.24 cm)

Material Inlet

1” NPT(F)2” NPT(M)

Material Outlet

1” NPT(F)

Air Inlet (female)

1/2” NPT(F)

Air Inlet Pressure Range psi (bar)

30 - 150 (2.1 – 10.3)

Fluid Pressure Range psi (bar)

690 – 3495 (47.6 – 241)

Max Cycles/Minute

14.5 (237.6)

Displacement/Cycle cu in (cm3)

60

Cycles/gal (L)

15.9 (4.2)

Flow @ 60 Cycles gpm (L/min)

3.8 (14.3)

Noise Level @ 60 psi dBA

84.7

Weight* lb (kg)

46.2 (21)

Container Suitability

Remote Mounting

Model No.

Package Type

Pump Model

Ram/Lift Model

Follower

Follower Seal Description

Material

TP0623G51RK47TA2

55 Gallon Two Post Ram

AF0623G11RK47

RM552S-C

66516-6

Double Lip

Polyurethane

Recommended Accessories

Extrusion Guns
651500
For material over 200,000 cP 3/8” (F) inlet
651533 For low- to medium-viscosity fluids 1/4” NPS (M) inlet

Extrusion Gun Nozzle Kits
66541-6
Orifice .063” (1.63 mm), 66541-9 Orifice .093” (2.36 mm),
66541-2 Orifice .125” (3.17 mm)

Swivel
636085 Straight, 3/8” (M) x 3/8” (F) / fabric with neoprene / 8,000 psi (552 bar) max. working pressure
636088 Z-360°, 3/8” (M) x 3/8” (F) / fabric with neoprene /  8,000 psi (552 bar) max. working pressure
75364 Straight, for use with 651533 gun / 1/4”-18 NPTF to 1/4”-18 NPSM / 10,000 psi (690 bar) max working pressure

Material Filters
1” F (2) inlet 3/8” F (3) outlet / 6,000 psi (414 bar) max. / Carbon Steel
651418-40-B for 40 Mesh (375 Microns)
651418-70-B for 70 Mesh (200 Microns)

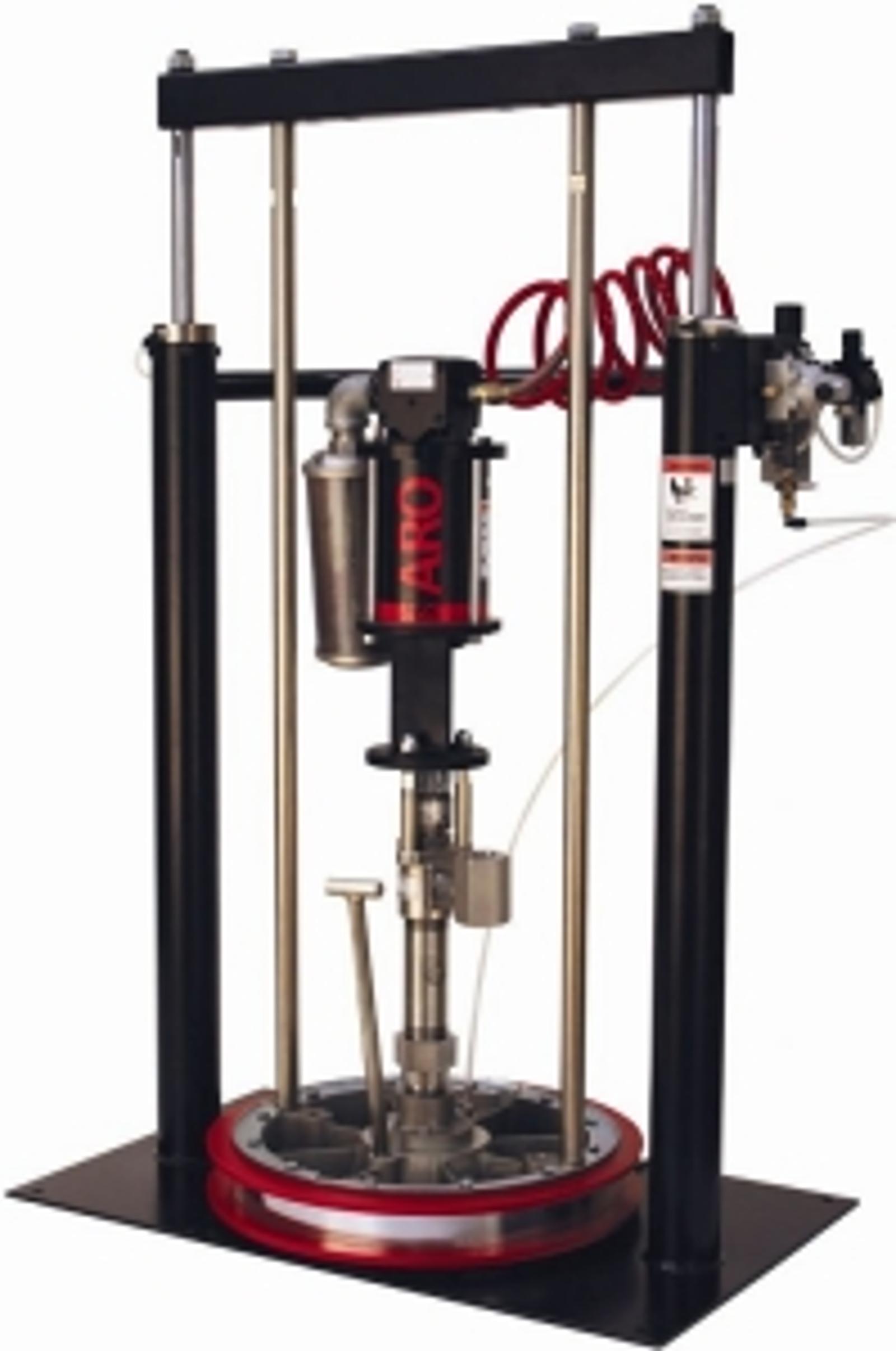

AF0623G Piston Pump Accessories Package
