Available Models
Pump Model** | Container Suitability | Plunger Material | Upper Packings | Lower Packings | Lower Pump Model | Packaging Service Kit |

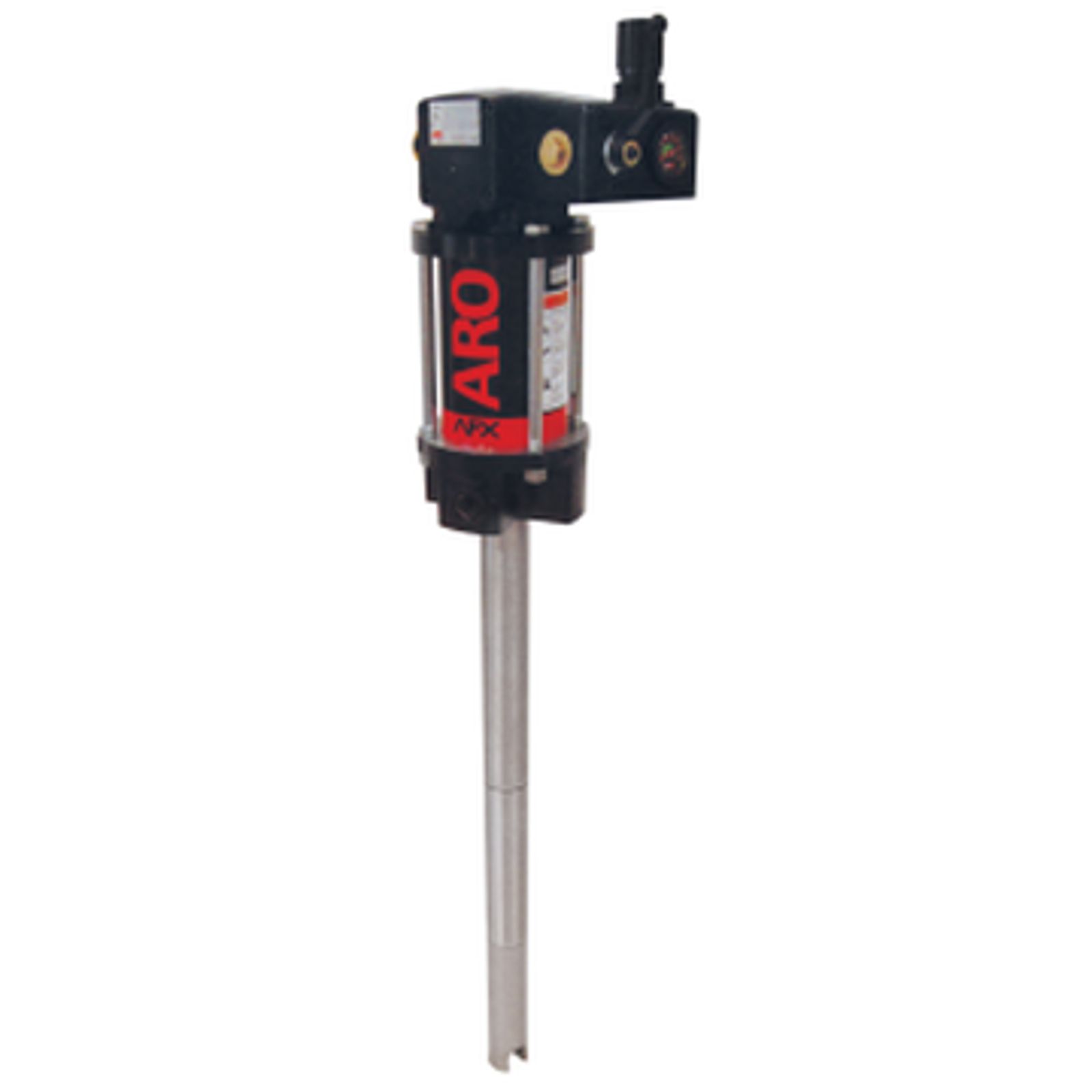

AF0475L43PBL1 | 16 GAL (60.6 L) / 120 LB (54.4 kg) Drum | Carbon Steel | Polyurethane | Buna “N” | - | 637512.0 |
AF0450L53PKL1 | 55 GAL (208.2 L) / 400 LB (181.4 kg) Drum | Carbon Steel | Polyurethane | Buna “N” | - | 637512.0 |
Specifications
Ratio | 75:1 |
Stroke | 6” (15.2 cm) |
Material Outlet | 1/2” -14 NPT |
Air Inlet (female) | 1/2” -14 NPT |
Air Inlet Pressure Range psi (bar) | 0-100 (0-6.9) |
Fluid Pressure Range psi (bar) | 0 - 7500 (0 - 517) |
Max Delivery/Minute @ 75 cycles | 5.5 lbs/min (2.5 kg) |
Noise Level @ 60 psi dBA | 81.8 |
Material Inlet | Immersed |
Packages
Model No. | Package Type | Pump Model | Drum Cover | Bung Adapter | Ball Valve Regulator | Follower |
DC0475L53PBL1C11 | 55 Gallon Drum Cover | AF0475L53PBL1 | 71060-1 | 4148 | 67442 | 640015-2 |
DM0475L53PBL1C11 | 55 Gallon Drum Mount | AF0475L53PBL1 | - | 4148 | 67442 | 640015-2 |
DCX Series Drum Cover

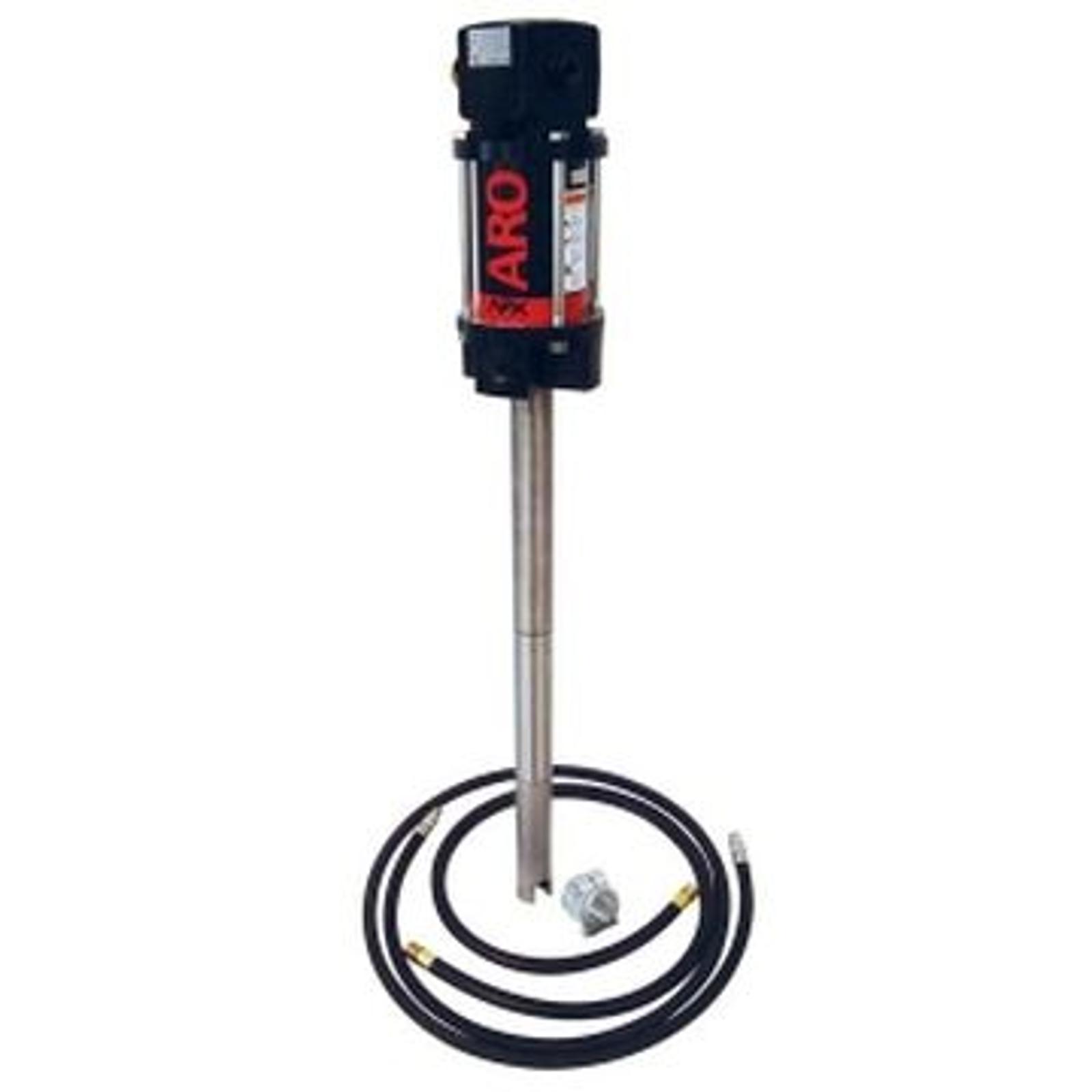

DMX Series Drum Mount
