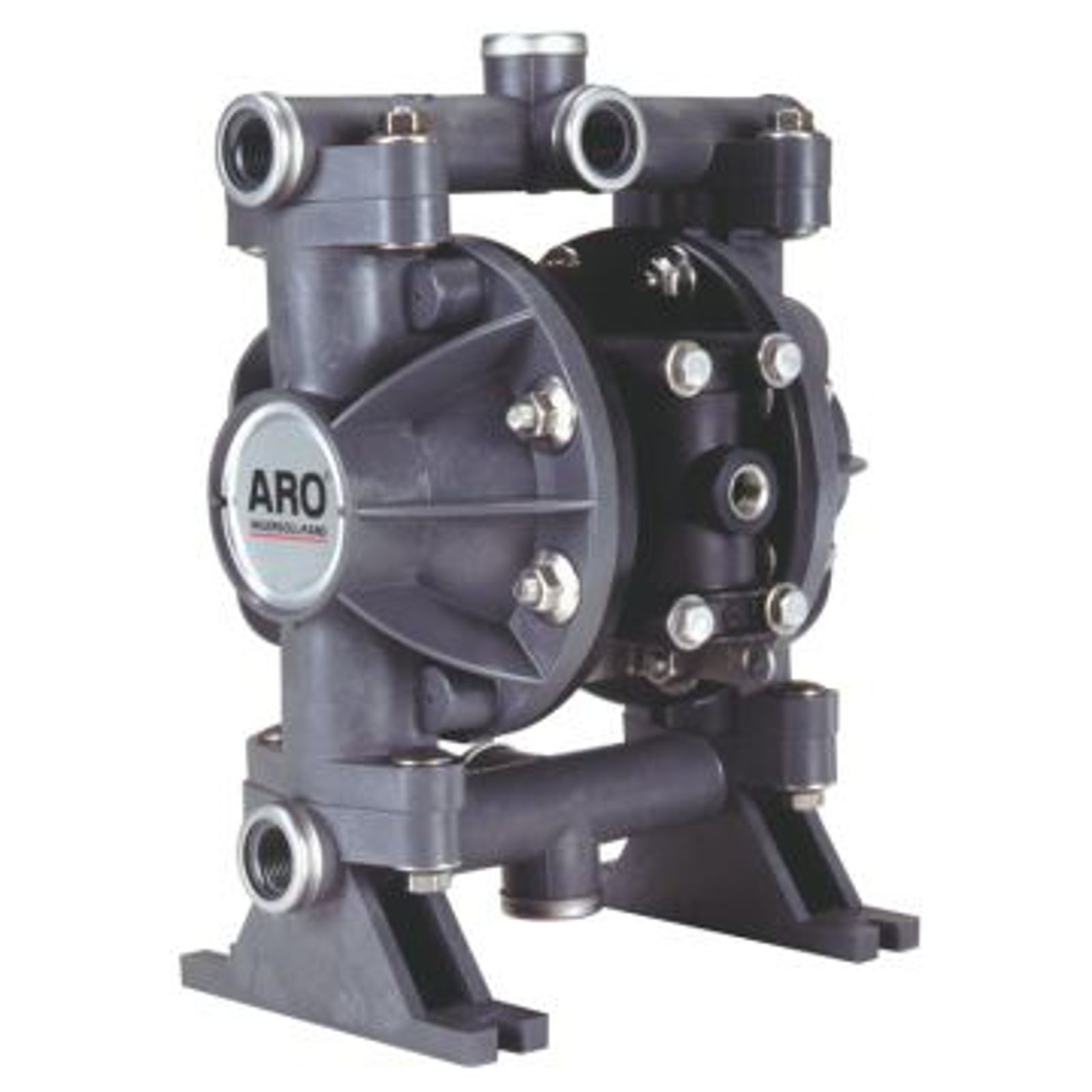

Part of our Compact Series of pumps, our 1/2” classic pumps feature big performance in a small package. With flow rates up to 13 GPM (49.2 LPM) and a wide range of material and porting configurations.
Features
- ARO has the world's best selling 1/2" ported diaphragm pump.
- Designed to meet your OEM application needs.
- Efficiency - Motor design delivers optimum air efficiency
- Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
- Versatility - Center, End, Dual Inlet / Outlet, and Swivel Top manifold configurations to fit your specific application
- Evironmentally Sound - Bolted construction for leak-free fluid handling
- Serviceability - Ease of service through modular design
Accessories
- 76763 Wall Mount Bracket
- 67165-X Cycle Actuation Kit
- P29122-600 Piggyback Filter-Regulator
- 637141 Air Section Service Kit
- 637140-XX Fluid Section Service Kit
Pump Casing Materials
- Polypropylene
- Groundable Acetal
- PVDF (Kynar)
Diaphragm Materials
- Neoprene
- Nitrile
- Viton
- PTFE / Santoprene
- E.P.R.
- Polyurethane
- Hytrel
- Santoprene
