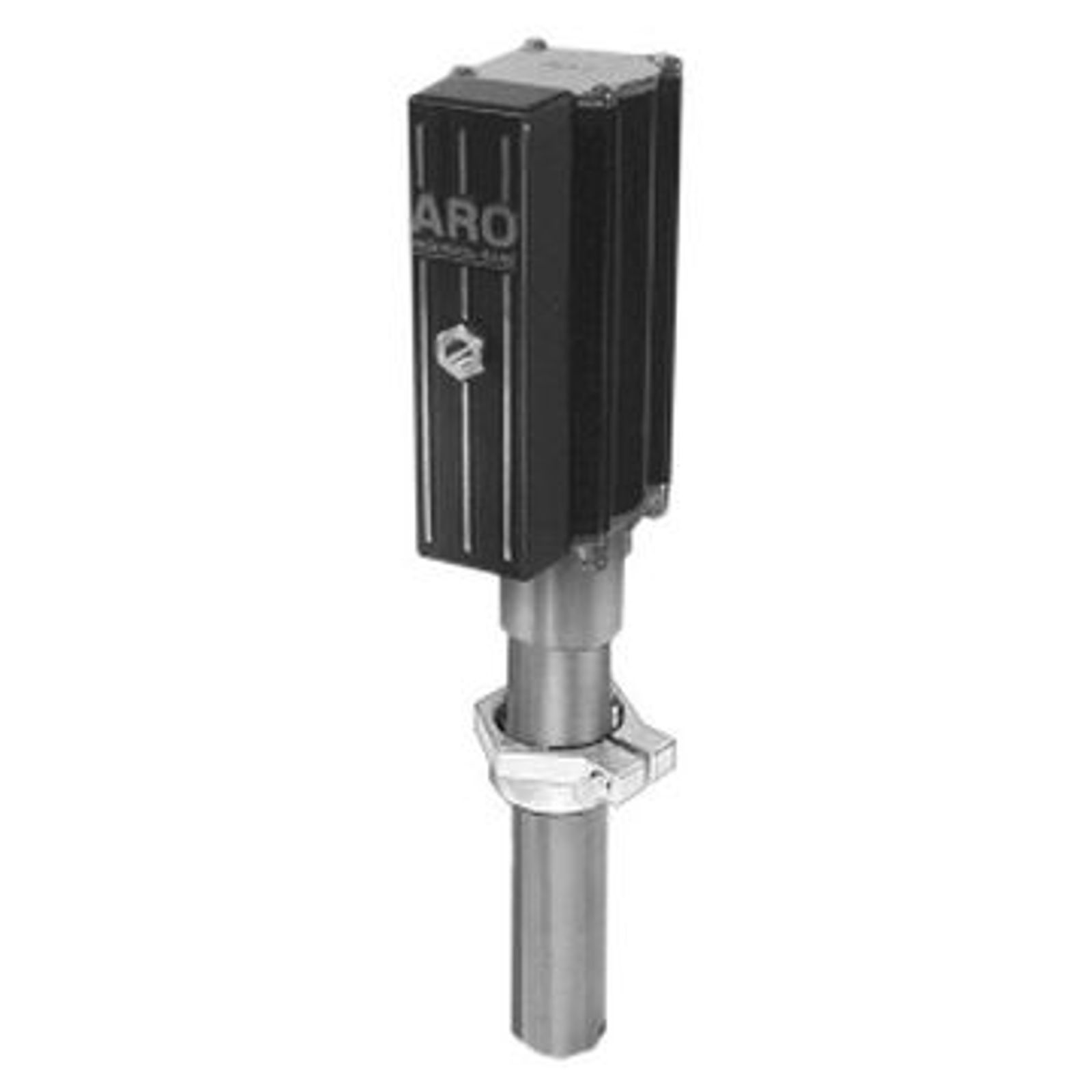

LM2350E-XX-B 3" Grease Pump & Package

50:1 Ratio
Max Flow: 4 GPM (2 LPM)
Fluid Pressure: 0-7500 psi (0-517.2 bar)

Pump Model
50:1 Piston Pump
LM2350E-21-B	(-22 = BSP thread)
LM2350E-31-B	(-32 = BSP thread)
LM2350E-41-B	(-42 = BSP thread)

ARO® lubrication pumps handle motor and gear oils, transmission fluid, and standard and industrial greases. Pumps are offered from 3:1 to 100:1 ratios in order to meet the requirements of any application - commercial vehicle servicing to lubricating heavy mining equipment.

Pump Specifications
Lower Pump Material	Carbon Steel
Air Motor Diameter	3”
Air Inlet Pressure Range psi (bar)	0-150 (0-10.3)
Fluid Pressure Range psi (bar)	0-7500 (0-517.2)
Stroke Length	3”
Max. Recommended Cycles/Minute	135
Flow Rate lbs/min (kg/min)	4 (2)
Cycles Per Gallon (Liter)	19.2 (5.0)
Air Inlet Size	1/4” (F)
Fluid Outlet Size	3/8” (F)
Fluid Inlet Size	Immersed

Model	Size	Pump Model	Meter	Control Handle	Dolly	Drum Cover	hose	Follower Plate	Handle	Adapter	Z-Swivel

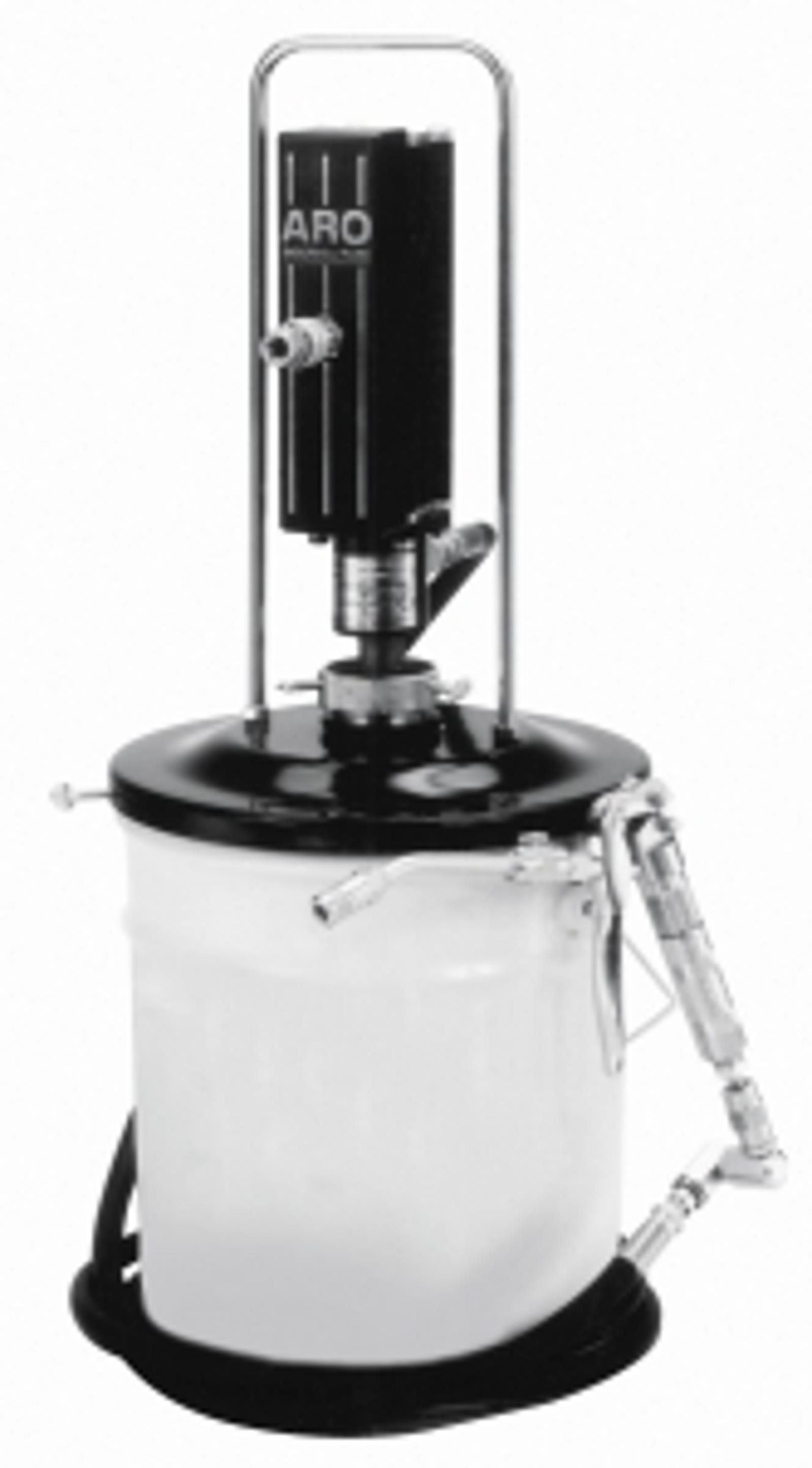

LP3001-1	35-lb (15.8 kg)	LM2350E-21-B	N/A	636103	N/A	94420	624201-10	640095-2-B	94334	94334	636077
LP3002-1	120-lb (54.4 kg)	LM2350E-31-B	622201-3	N/A	N/A	94421	624401-4	640165	N/A	N/A	N/A

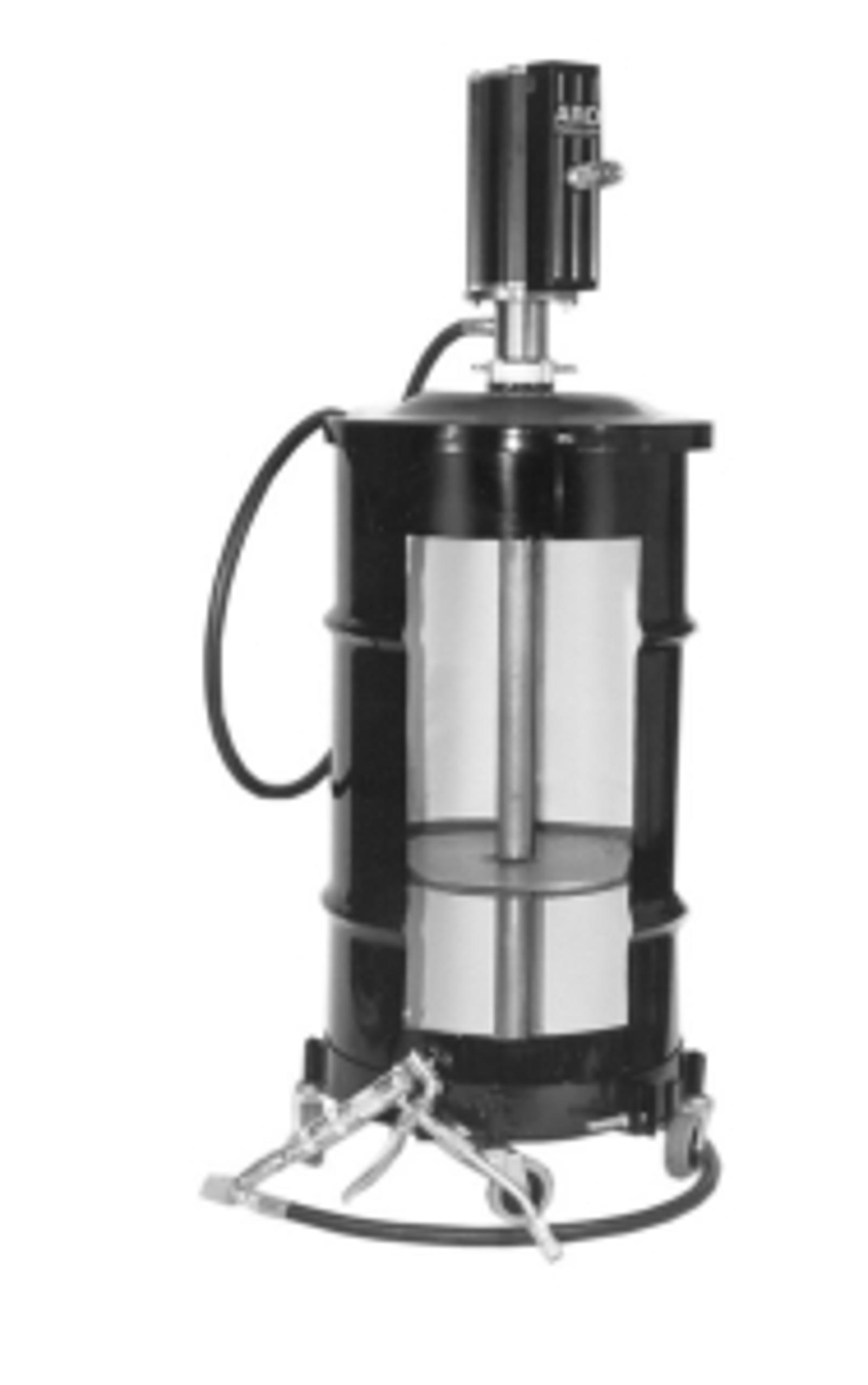

LP3003-1	120-lb (54.4 kg)	LM2350E-31-B	N/A	636103	640057	94421	624201-10	640165	N/A	76493	636077
LP3004-1	120-lb (54.4 kg)	LM2350E-31-B	N/A	636111	640058-2	94421	624201-10	640165	N/A	76493	636077

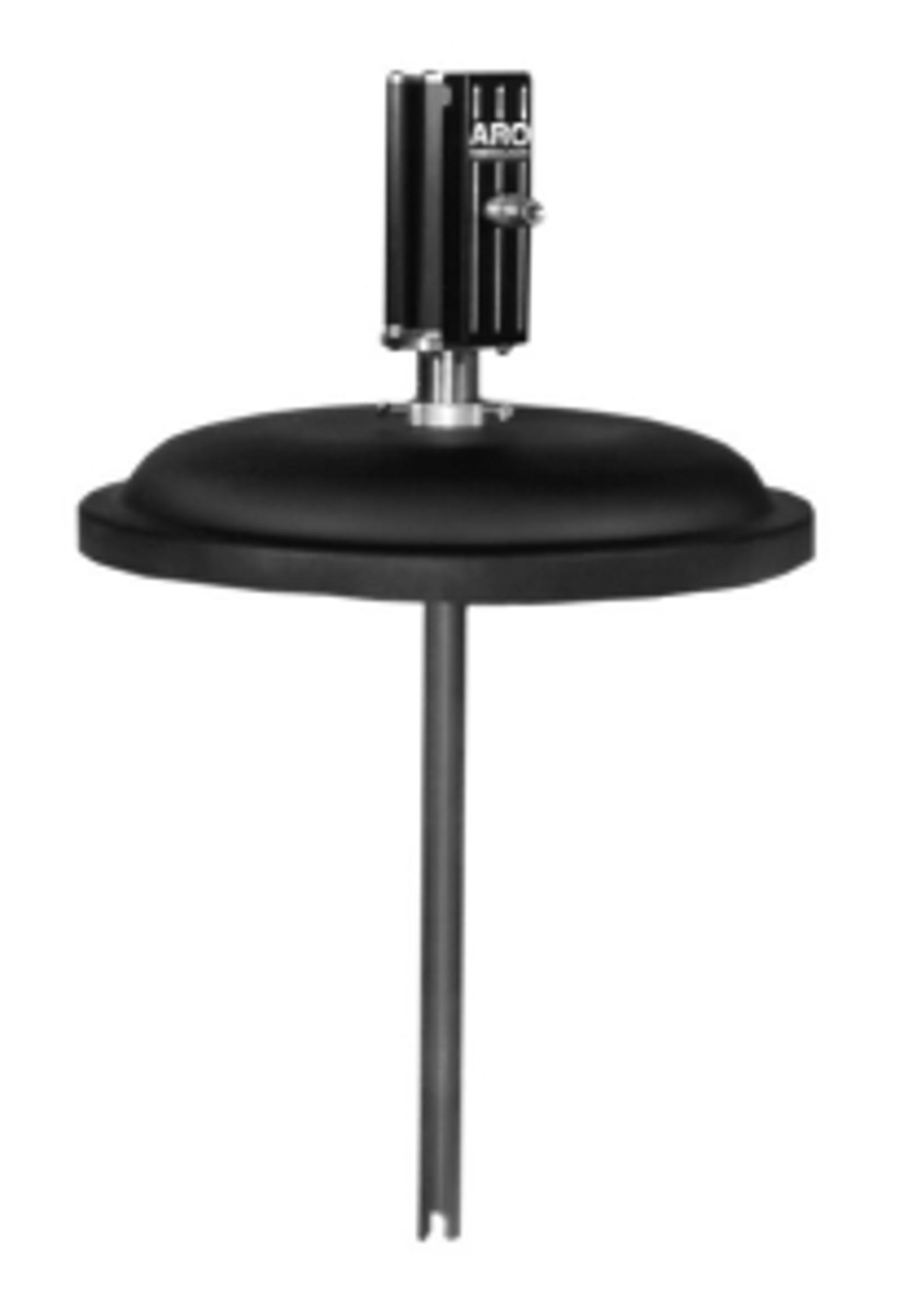

LP3005-1	400-lb (181.4 kg)	LM2350E-41-B	622201-3	N/A	N/A	94422	624401-4	N/A	N/A	N/A	N/A
LP3006-1	120-lb (54.4 kg)	LM2350E-31-B	N/A	636103	640062 (cart)	94421	624201-10	640165	N/A	76493	636044
LP3007-1	60-lb (27.2 kg)	LM2350E-61-B	N/A	636111	N/A	71740-1	624401-4	N/A	N/A	N/A	636077
LP3008-1	35-lb (15.8 kg)	LM2350E-21-B	N/A	N/A	N/A	94420	624201-10	640095-2-B	94334	94334	N/A
LP3009-1	400-lb (181.4 kg)	LM2350E-41-B	622201-3	N/A	N/A	94422	624401-4	640015-1	N/A	N/A	N/A
