Pump Model | |
|---|---|
*50:1 Piston Pump* | |
LM2350E-21-B | (-22 = BSP thread) |
LM2350E-31-B | (-32 = BSP thread) |
LM2350E-41-B | (-42 = BSP thread) |
Pump Specifications | |
|---|---|
Lower Pump Material | Carbon Steel |
Air Motor Diameter | 3” |
Air Inlet Pressure Range psi (bar) | 0-150 (0-10.3) |
Fluid Pressure Range psi (bar) | 0-7500 (0-517.2) |
Stroke Length | 3” |
Max. Recommended Cycles/Minute | 135 |
Flow Rate lbs/min (kg/min) | 4 (2) |
Cycles Per Gallon (Liter) | 19.2 (5.0) |
Air Inlet Size | 1/4” (F) |
Fluid Outlet Size | 3/8” (F) |
Fluid Inlet Size | Immersed |
As bombas de lubrificação ARO são capazes de bombear óleos de motor e de engrenagem, fluido de transmissão e graxas automotivas e industriais. As bombas são oferecidas com relação de pressão de 3:1 até 100:1, para satisfazer os requisitos de qualquer aplicação, desde a manutenção de veículos até a lubrificação de equipamentos pesados de mineração.
*Model * | Size | *Pump Model * | Meter | Control Handle | Dolly | Drum Cover | hose | Follower Plate | Handle | Adapter | Z-Swivel |
|---|---|---|---|---|---|---|---|---|---|---|---|

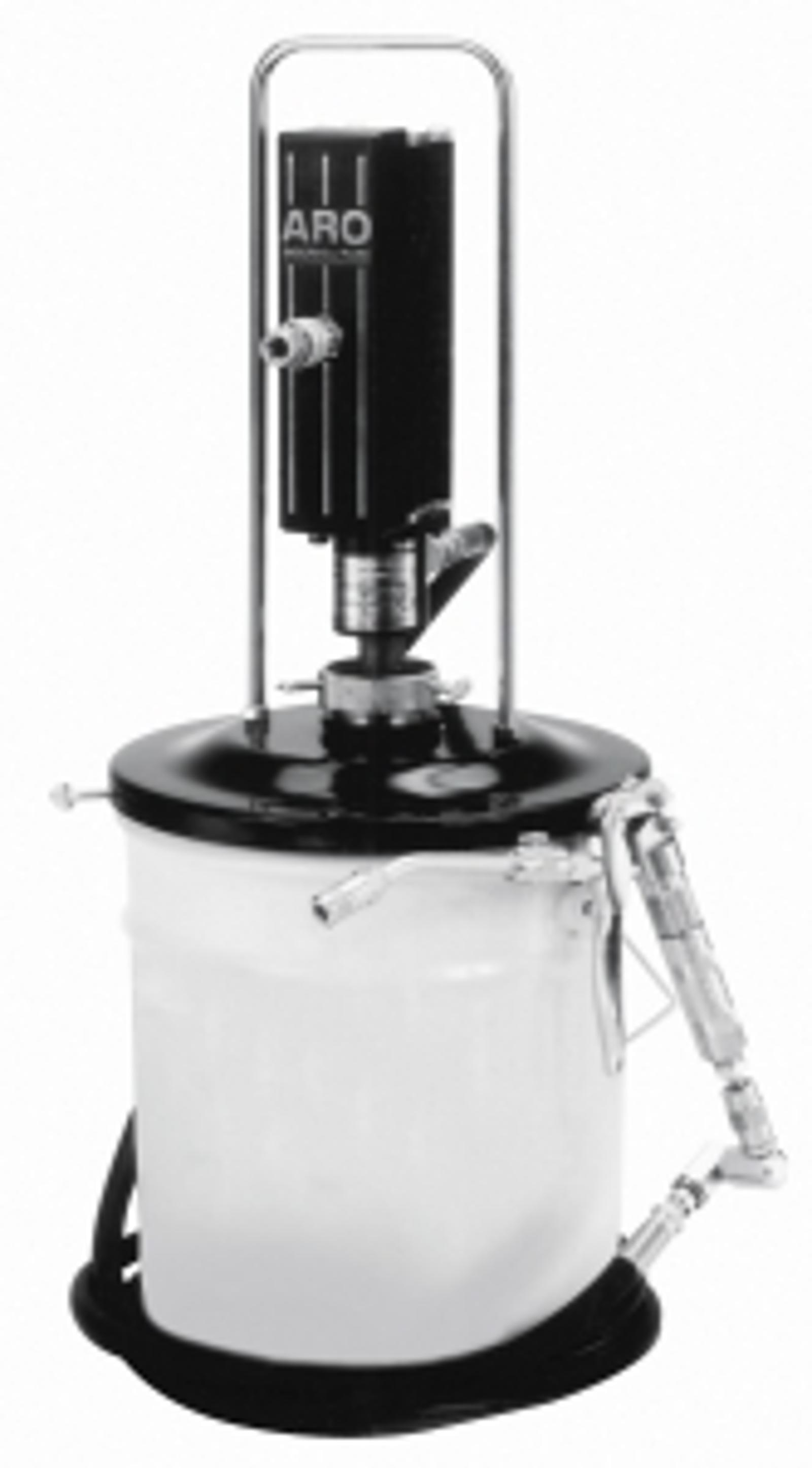

LP3001-1 | 35-lb (15.8 kg) | LM2350E-21-B | N/A | 636103 | N/A | 94420 | 624201-10 | 640095-2-B | 94334 | 94334 | 636077 |
LP3002-1 | 120-lb (54.4 kg) | LM2350E-31-B | 622201-3 | N/A | N/A | 94421 | 624401-4 | 640165 | N/A | N/A | N/A |

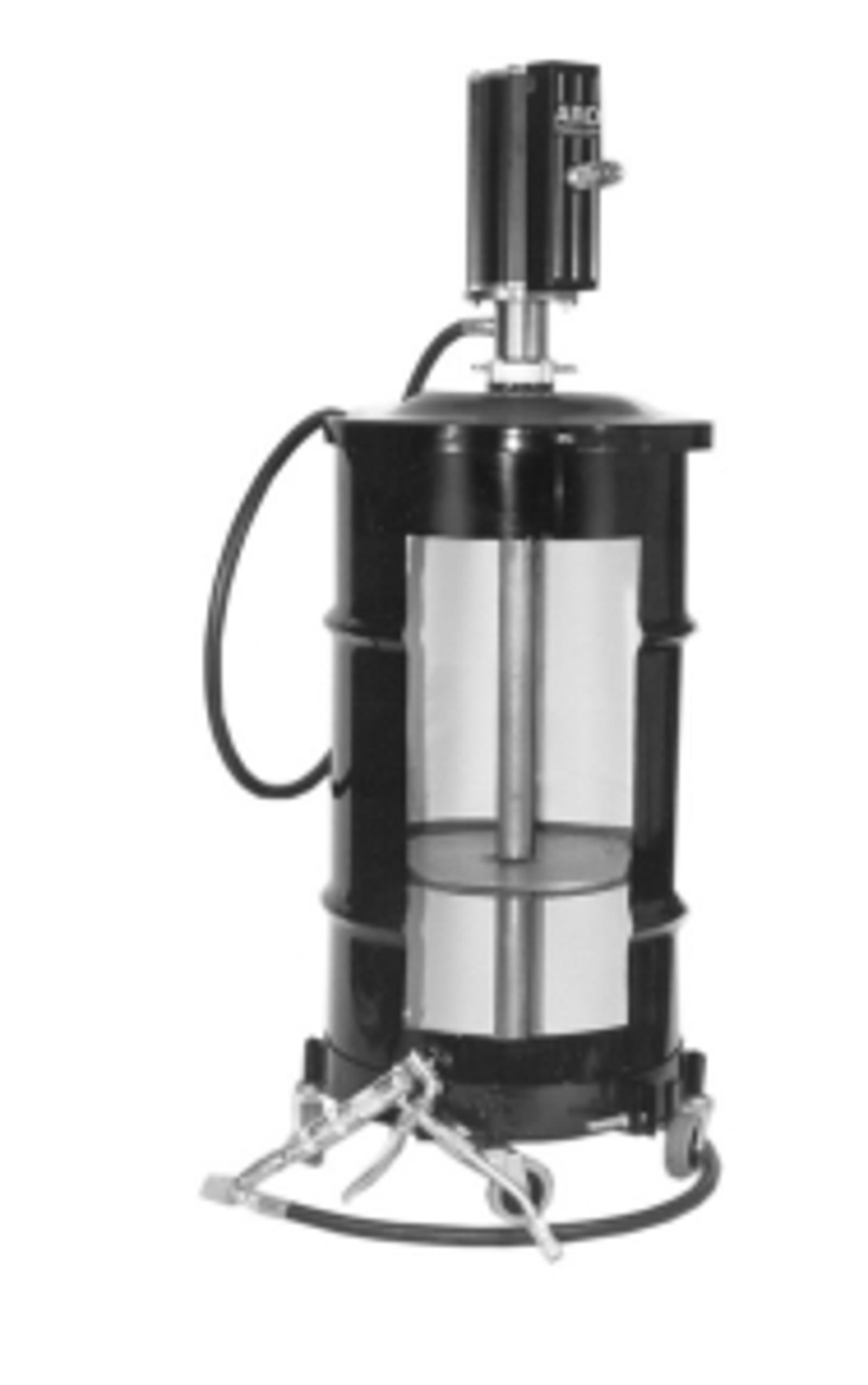

LP3003-1 | 120-lb (54.4 kg) | LM2350E-31-B | N/A | 636103 | 640057 | 94421 | 624201-10 | 640165 | N/A | 76493 | 636077 |
LP3004-1 | 120-lb (54.4 kg) | LM2350E-31-B | N/A | 636111 | 640058-2 | 94421 | 624201-10 | 640165 | N/A | 76493 | 636077 |

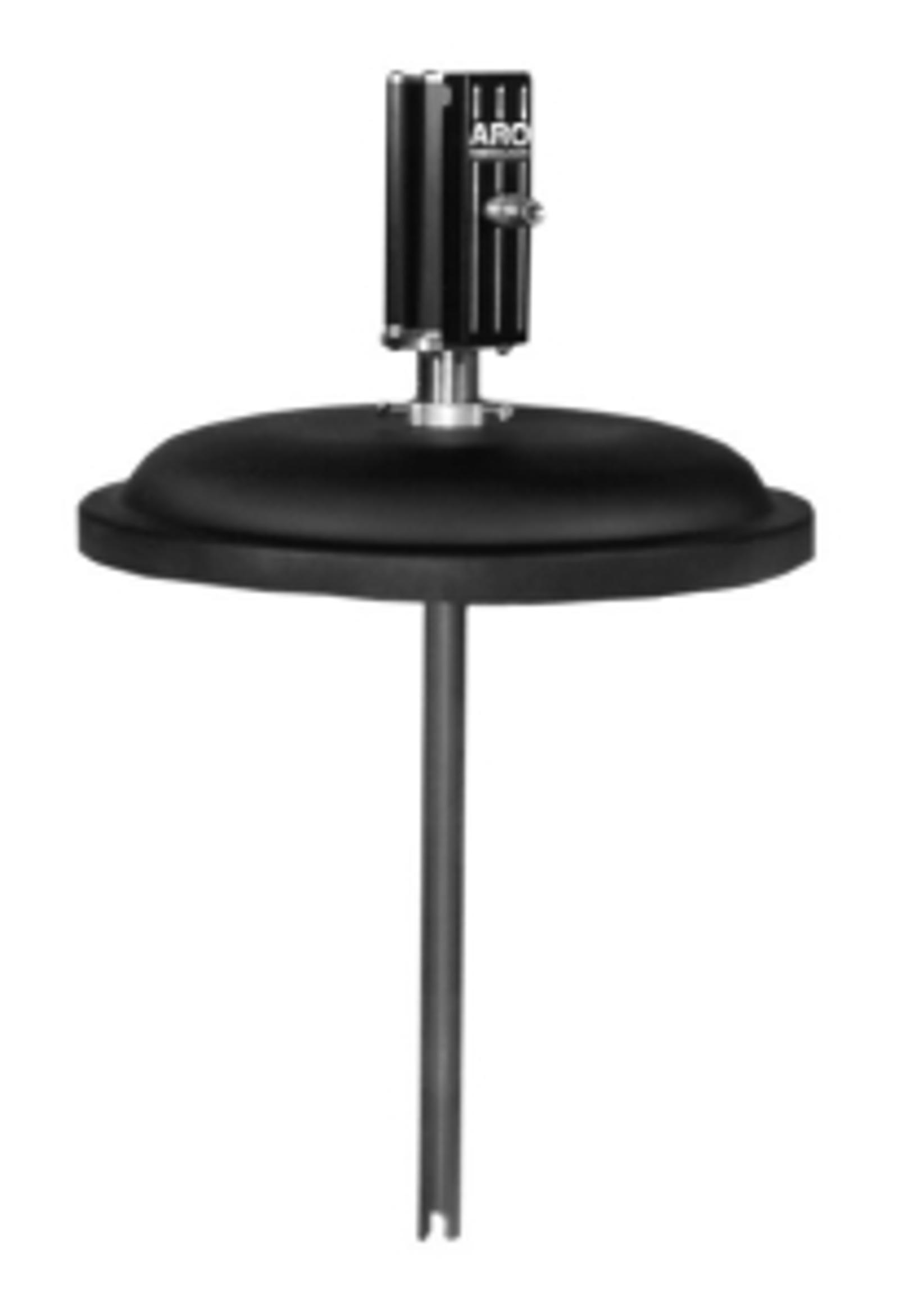

LP3005-1 | 400-lb (181.4 kg) | LM2350E-41-B | 622201-3 | N/A | N/A | 94422 | 624401-4 | N/A | N/A | N/A | N/A |
LP3006-1 | 120-lb (54.4 kg) | LM2350E-31-B | N/A | 636103 | 640062 (cart) | 94421 | 624201-10 | 640165 | N/A | 76493 | 636044 |
LP3007-1 | 60-lb (27.2 kg) | LM2350E-61-B | N/A | 636111 | N/A | 71740-1 | 624401-4 | N/A | N/A | N/A | 636077 |
LP3008-1 | 35-lb (15.8 kg) | LM2350E-21-B | N/A | N/A | N/A | 94420 | 624201-10 | 640095-2-B | 94334 | 94334 | N/A |
LP3009-1 | 400-lb (181.4 kg) | LM2350E-41-B | 622201-3 | N/A | N/A | 94422 | 624401-4 | 640015-1 | N/A | N/A | N/A |
