ARO 2-Ball Piston Pumps

2-Ball Piston Pumps Are Designed For Uniform, Consistent Fluid Delivery

Simply Versatile

2-ball pumps are among the most versatile in the ARO® line. They are capable of handling applications from simple transfer to the extrusion of low- to medium- viscosity materials up to 100,000 centipoise (cPs) with fluid delivery up to 18.1 gpm (68.6 L/min).


61204X-X 2-Ball Piston Pump & Packages

61204X-X Series 2-Ball Pumps offer 2" air motor, can handle a max flow rate of 18 GPM (68.1 l/min), operate within a max fluid pressure of 150 psi (10.3 bar).
Learn more

650110-C 2-Ball Piston Pump & Packages

650110-C 2-Ball Piston Pump features; - 2:1 Ratio - 4 1/4" Air Motor - 2.0 GPM (7.5 l/min) Max Flow - 0-300 PSI (0-20.7 bar)

2-Ball Piston Pump 65031X-X N Series

65031X-X 'N' Series 2-Ball Pumps features; *3" Air Motor *4.2 GPM (16.1 l/min) Max Flow *0 - 600 PSI (0 - 41.4 bar) Fluid Pressure

650939-X4D-B 2-Ball Pump Piston Pump

650939-X4D-B ARO 2-Ball Pump Piston Pump features: 2.4:1 Ratio, 4.125 sq in Hydraulic, 120 - 4800 psi (8.3 - 331.0 bar) of fluid pressure.

650943-X4X-B 2-Ball Piston Pump

650943-X4X-B ARO 2-Ball Piston Pump features; *0.58:1 Ratio, Hydraulic *3.1 GPM (11.9 l/min) max flow *85 - 2054 PSI (5.9 - 140.7 bar)

650944-XXX-B 2-Ball Piston Pump

650943-X4X-B 2-Ball Piston Pump include the following features; *3.3:1 Ratio, 2.062 sq. in. Hydraulic *1.6 GPM (6.1 l/min) max flow

650940-XXD-B 2-Ball Pump Piston Pump

650940-XXD-B ARO 2-Ball Pump Piston Pump features; *12.9 GPM (48.8 l/min) max flow *40 - 1,600 psi (2.8 - 110.3 bar) of fluid pressure.

AF0409A Series 2-Ball Piston Pump

AF0409A Series ARO 2-Ball Piston Pumps & Packages include the following features; *9:1 Ratio *4 1/4" Air Motor *2.8 GPM (10.5 l/min) of max flow.

AF0409C Series 2-Ball Piston Pump

AF0409C Series 2-Ball Piston Pumps & Packages include the following features; *9:1 Ratio *4 1/4" Air Motor *2.8 GPM (10.5 l/min) Maximum Flow


AF0409AX3 9:1 Oil Piston Pump

AF0409AX3 9:1 Oil Pump features; *9:1 Ratio *4 1/4" Air Motor *2.8 GPM (10.5 l/min) Max Flow *Max Fluid: 1,350 psi for efficient and reliable fluid transfer.

AF0411 Series 2-Ball Piston Pumps

AF0411 Series ARO 2-Ball Piston Pumps features; *11:1 Ratio *4 1/4" Air Motor *3.7 GPM (14 l/min) Max Flow *Max Fluid: 1,747 psi (120 bar)

AF0422 2-Ball Piston Pump & Packages

AF0422 Series ARO 2-Ball Piston Pumps & Packages include the following features; *22:1 Ratio *4 1/4" Air Motor *1.9 GPM (7.2 l/min) of max Flow.

AF0430 Series 2-Ball Piston Pumps

AF0430 ARO Series 2-Ball Piston Pumps & Packages include the following features: *30:1 Ratio *4 1/4" Air Motor *1.3 GPM (4.9 l/min) of max Flow.

AF0623G Series 2-Ball Piston Pumps

AF0623G Series 2-Ball Piston Pumps & Packages feature: *23:1 Ratio *6" Air Motor *3.8 GPM (14.3 l/min) of Max Flow for minimal air consumption.

AF0645 Series

AF0645 Series 2-Ball Piston Pumps & Packages features; *45:1 Ratio *6" Air Motor *1.9 GPM (7.3 l/min) Max Flow *Max Fluid Pressure: 5,459 psi (376.3 bar)


AF0660 Series 2-Ball Piston Pumps

AF0660 Series 2-Ball Piston Pumps & Packages features: *60:1 Ratio *6" Air Motor *1.4 GPM (5.4 l/min) Max Flow *Max Fluid: 6,000 psi (413.7 bar)


AF0810 Series

AF0810 Series 2-Ball Piston Pump features; *10:1 Ratio *8" Air Motor *15.6 GPM (58.9 l/min) Max Flow *Max Fluid Pressure: 1,200 psi (82.7 bar)


AF0828B Series 2-Ball Piston Pump

ARO AF0828B Series 2-Ball Piston Pump feature: *28:1 Ratio *8" Air Motor *6.27 GPM (23.7 l/min) Max Flow *Max Fluid Pressure: 3360 psi (231.6 bar)


AF0840 Series 2-Ball Piston Pump

ARO AF0840 Series 2-Ball Piston Pump features: 40:1 Ratio, 8'' Air Motor, 3.7 GPM (14 l/min) max flow and Max Fluid Pressure: 4,967 psi (342.5 bar)


AF1015 Series 2-Ball Piston Pumps

AF1015 Series 2-Ball Piston Pump features; *15:1 Ratio *10" Air Motor *18.1 GPM (68.6 l/min) Max Flow *Max Fluid Pressure: 1,350 psi (93 bar)


AF1045 Series 2-Ball Piston Pumps

AF1045 Series 2-Ball Piston Pump features; *45:1 Ratio *10" Air Motor *6.27 GPM (23.7 l/min) Max Flow *Max Fluid: 4,050 psi

AF1223X1 Series 2-Ball Piston Pump

ARO AF1223X1 Series 2-Ball Piston Pumps features; *23:1 Ratio *12" Air Motor *18.1 GPM (68.6 l/min) Max Flow *Max Fluid: 2,070 psi

AF1223X5 UV/EB Series 2-Ball Pump

ARO AF1223X5 UV/EB Series 2-Ball Piston Pumps & Packages features: *23:1 Ratio *12" Air Motor *18.1 GPM (68.6 l/min) *Max Fluid Pressure: 2,070 psi (142.7 bar)


AF1265B Series

AF1265B Series 2-Ball Piston Pumps & Packages features: *65:1 Ratio *12" Air Motor *6.27 GPM (23.7 l/min) Max Flow *Max Fluid pressure: 5,850 psi (403.3 bar)


NM2202X-X1-X31 2-Ball Piston Pump

NM2202X-X1-X31 N Series 2-Ball Piston Pump feature: 2:1 Ratio, 2" Air Motor, 2.15 GPM (8.14 l/min) Max Flow, Max Fluid Pressure: 351 psi (24.2 bar).


NM2304X-X1-X11 | 2-Ball Piston Pump

NM2304X-X1-X11 N Series 2-Ball Piston Pump features: 4:1 Ratio, 3" Air Motor, 2.1 GPM (8 l/min) Max Flow, Max Fluid Pressure: 600 psi (41.4 bar)


NM2318B-13-X43 2-Ball Piston Pump

NM2318B-13-X43 N Series 2-Ball Piston Pump features: 18:1 Ratio, 3" Air Motor, 0.61 GPM (2.3 l/min) Max Flow, Max Fluid: 2,700 psi

NM2328A-11-X11 2-Ball Piston Pump

NM2328A-11-X11 N Series 2-Ball Piston Pump features: 28:1 Ratio, 3" Air Motor, 0.38 GPM (1.4 l/min) Max Flow, Max Fluid: 4,200 psi

Applications advantages of 2-balls:

  • Spray: 2-ball pumps deliver the constant flow rate and pressure needed for consistent and efficient coatings applications
  • Transfer & Supply: Depending on the model, some 2-ball pumps can achieve flow rates up to 18.1 gpm, providing dependable results
  • Extrusion: 2-ball pumps generate pressure to handle extrusion of low-to medium-viscosity
  • Lubrication:  ARO® 2-balls pumps provide the flow and pressure required for moving light oils and grease lubricants
  • High Pressure Cleaning: ARO® Wash Pump Packages are portable and offer the the right option for industrial cleaning applications



Materials advantages of 2-balls:

  • Sheer sensitive materials: ARO® 2-ball pumps minimize friction points to prevent fluid shear, when compared to other similar pumping technologies
  • Abrasive and high solid materials: ARO 2-ball pump minimize friction points and allow smooth passages to maintain fluid consistency
  • Optional ceramic coating provides an even
    stronger defense against highly abrasive fluids like paint and glass-filled sealer

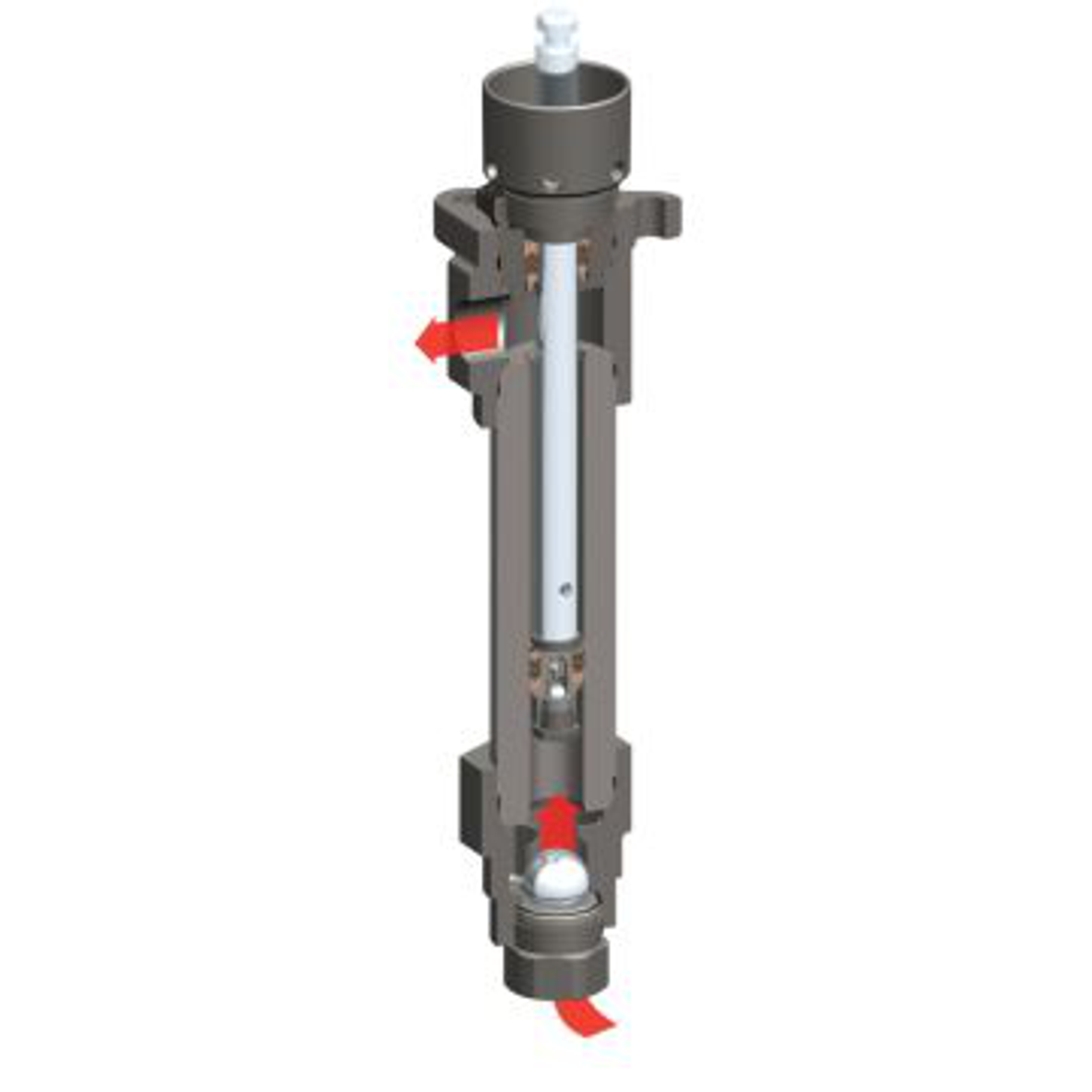

How the ARO 2-ball air-operated piston pump works
