Maximum Flow gpm (lpm): 172 (651)
Maximum Discharge Pressure psi (bar): 120 (8.3)
Fluid Ports Inlet/Outlet (bsp): 2” NPTF Rp2 (2-11 BSP) (Side or Center)2” ANSI/DIN Flange with 2” pipe tap (SS only/Center)
Material of Construction: Aluminum, Cast Iron, Stainless Steel, Hastelloy®
Maximum Solids in (mm): 1/4 (6.4)
Maximum Dry Suction Lift ft (m): 14 (4.2)

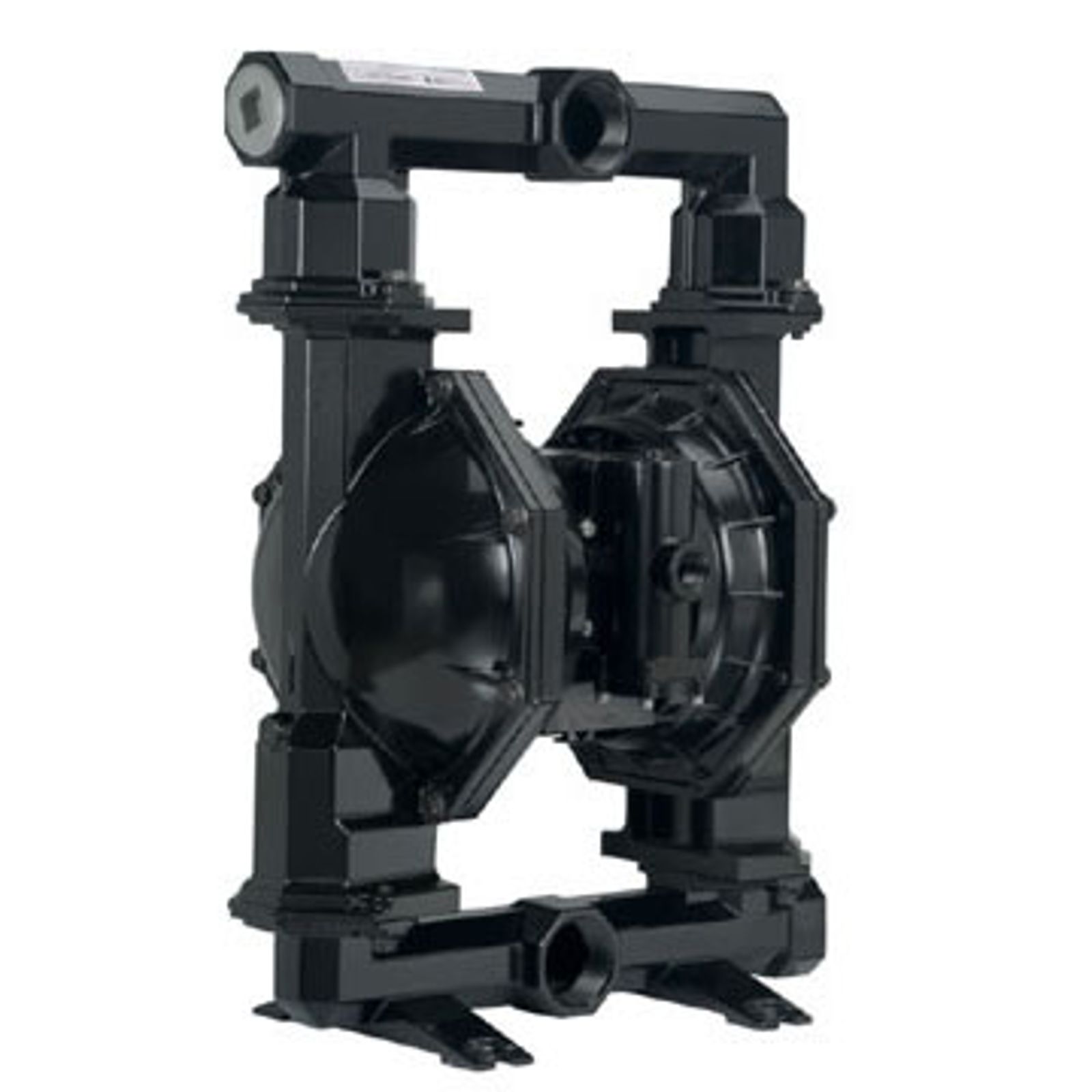

ARO EXP 2” metallic pumps achieve flow rates of up to 172 GPM (651 LPM) and offer a wide array of material and porting configurations. These pumps are often used for transfer, filling, recirculation and batching in Ceramic, Paint, Oil & Gas, Chemical and Petrochemical markets.
Available with Long-life PTFE diaphragms.
The Ultimate in heavy duty pump design.
Up to 4 times the life of traditional diaphragm pumps due to the EXP's new convoluted diaphragm design.
Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal
Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
Versatility - Broad range in materials of construction for optimum fluid compatibility
Environmentally Sound -Bolted construction for leak-free fluid handling and ribless fluid caps to eliminate cracking
Serviceability - Easier service through modular design
Maximum GPM (LPM): 172 (651)
Displacement per cycle: 1.4 (5.3) @ 100 psi Gallons (Liters)
Air Inlet (Female): 3/4 - 14 N.P.T.F.-1
Fluid Inlet/Outlet (Female):
PX20X-AXX-XXX-B( ) 2 - 11-1/2 N.P.T.F.-1
PX20X-BXX-XXX-B( ) Rp 2 (2 - 11 BSP parallel)
PX20X-FXX-XXX-B( ) 2” A.N.S.I./DIN Flange
Max. operating pressure psi (bar): 120 (8.3)
Suspended solids max. dia. in. (mm): 1/4” (6.4)
Maximum dry suction lift ft (m): 14 (4.2)
Sound Level: 70 PSI 50 Cycles/Min 85.0 db(A)
Muffler Included: 67389
Weight lbs (kg): See Catalog
